Want to get the most out of your headphones or speakers? The right 3.5mm audio wire can make a significant difference in sound quality. In this guide, we’ll delve into the world of 3.5mm audio cables, exploring the factors that affect sound performance and helping you choose the perfect cable for your setup.
By reading this article, you can learn:
- What are the structures and classifications of 3.5mm audio wire?
- What are the materials of common 3.5mm audio cables?
- What factors affect the sound quality of 3.5mm audio wire?
If you need a suitable 3.5mm audio wire supplier:
Table of Contents
Basic knowledge of 3.5mm audio wire
Structure of 3.5mm audio cables
3.5mm audio wire is a common cable for connecting audio devices. Its structure seems simple, but it contains multiple important components that work together to ensure the transmission quality of audio signals. Therefore, it is very important to first understand the structure of the 3.5mm audio cable.
3.5mm audio connector
The 3.5mm audio plug is one of the most common audio interfaces on electronic devices. It has a diameter of 3.5mm and has multiple metal pins inside for connecting the audio circuit of the device. Common pin definitions are TRS and TRRS, which correspond to different audio channels and functions.
The material of the 3.5mm plug is usually made of metals such as copper or gold-plated to ensure good conductivity, thereby achieving high-quality audio transmission. As the physical connection point of the audio signal, the plug connects the audio cable to the device and is an indispensable part of the entire audio system.

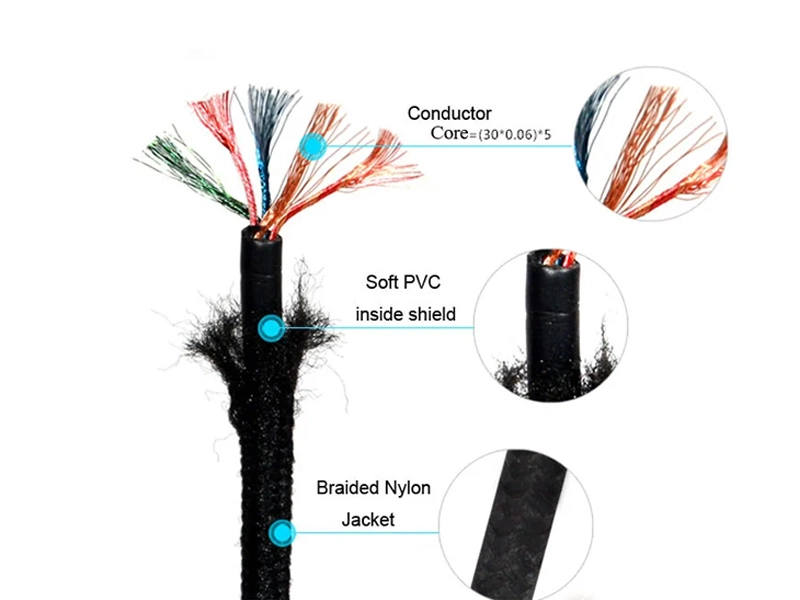

3.5mm audio cable
The core of an audio cable is the conductor, typically made of materials like oxygen-free copper (OFC) or silver-plated copper, responsible for transmitting audio signals. Surrounding the conductor is an insulating layer, usually made of PVC or TPE, which protects the conductor and prevents short circuits.
To shield the cable from external electromagnetic interference and maintain signal purity, a shielding layer is added. Common shielding materials include copper braid and aluminum foil. Copper braid offers good flexibility and shielding, while aluminum foil provides excellent shielding but is less flexible. For optimal protection, some cables employ dual shielding, combining both copper braid and aluminum foil.
3.5mm audio cable types: TRS, TRRS
TRS (Tip Ring Sleeve): This is the most common type and is usually used for stereo headphones. There are three conductors inside the TRS plug, corresponding to the left channel, right channel and ground wire. This type of audio cable can transmit stereo signals and is suitable for most common audio devices.
TRRS (Tip Ring Ring Sleeve): The TRRS plug has one more ring conductor than TRS, so there are four conductors inside. In addition to stereo signals, additional signals such as microphone signals or control signals can be transmitted. This type of audio cable is often used for headphones with microphones, mobile phone headsets and other devices.
Factors Affecting Sound Quality and Performance
The sound quality of 3.5mm audio cables is affected by many factors, including the material of the cable, the thickness of the cable diameter, the shielding layer, the quality of the plug, and the length. When choosing an audio cable, you need to consider these factors comprehensively and choose an audio cable that suits your device and listening habits to get the best listening experience.
Material
Here refers to the material of the 3.5mm wire, which is the metal wire inside the wire. The common ones on the market are copper, and the high-end or fever-level ones are silver-plated copper. Although the core is copper, it is also divided into specific processes. There are oxygen-free copper and single crystal copper. Oxygen-free copper is very common. Ordinary copper is 3N, that is, the purity is more than 99.95% copper, and 0.05% includes a small amount of oxygen, deoxidizer, and other impurities;
High-end wire means that the purity of copper can reach 4N (99.99%), 5N (99.999%) or even higher. 4N is suitable for ordinary and above users. If you are interested, you can choose 5N, which is a little expensive.

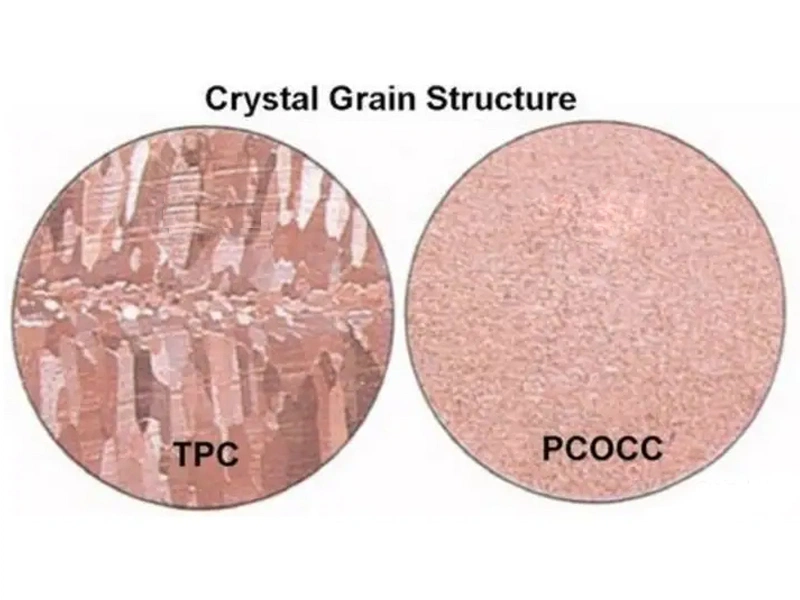

For audiophile-grade cables, single crystal copper is directly selected. Not only can the purity reach more than 5N, but the biggest advantage of single crystal copper is that the signal transmission can beat all oxygen-free copper (audio is really a metaphysics, and you can’t hear the obvious difference).
| Material | Applicable Scenarios |
|---|---|
| Electrolytic Copper (TPC) | Low-end wire, generally with a purity of 99.95%, claimed to be 4N, but actually a pseudo 4N. |
| Oxygen-free Copper (OFC) | Ordinary wire, generally with a purity of 99.995%, is a standard 4N, but the market claims to be 5N. |
| Crystallized Oxygen-free Copper (LC-OFC) | Mid- to high-end wire, used in mid- to high-end audio headphones |
| Monocrystalline Oxygen-free Copper (OCC) | High-end wire, with the highest purity, used in high-end audio equipment |
3.5MM audio wire diameter
The thickness of the 3.5MM audio wire directly affects the transmission quality of the audio signal. The thicker the wire diameter, the larger the cross-sectional area of the conductor, the smaller the resistance, the smaller the signal transmission loss, and the better the sound quality. If the wire diameter is too thin, it is easy to cause signal attenuation, resulting in sound distortion.
Better understand the direct relationship between gauge, impedance, and length.
The influence of wire diameter on sound quality is mainly reflected in the following aspects:
- Low-frequency Performance: A thicker wire diameter can better transmit low-frequency signals, making the bass more powerful.
- Anti-interference: A thicker wire diameter can reduce the impact of external electromagnetic interference and improve signal stability.

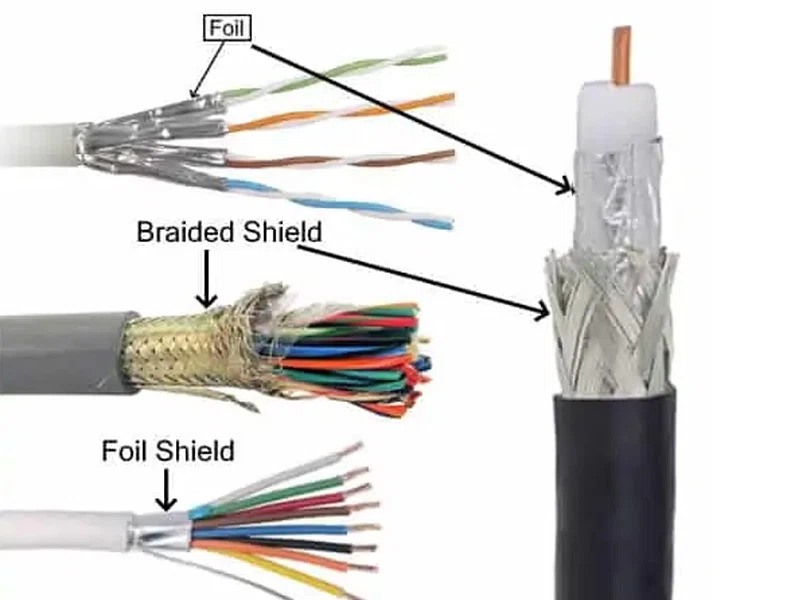

3.5MM audio wire shielding layer
The function of the shielding layer is to prevent external electromagnetic interference from interfering with the audio signal, thereby improving the signal-to-noise ratio. Generally, copper braided mesh and aluminum foil are used for shielding. Copper braided mesh has good flexibility and better shielding effect, but the cost is high. Aluminum foil has good shielding effect, but poor flexibility.
The impact of the shielding layer on sound quality is mainly reflected in the following aspects:
- Anti-interference: The shielding layer can effectively reduce external electromagnetic interference and make the sound purer.
- Background Noise: A good shielding layer can reduce background noise and improve the signal-to-noise ratio.

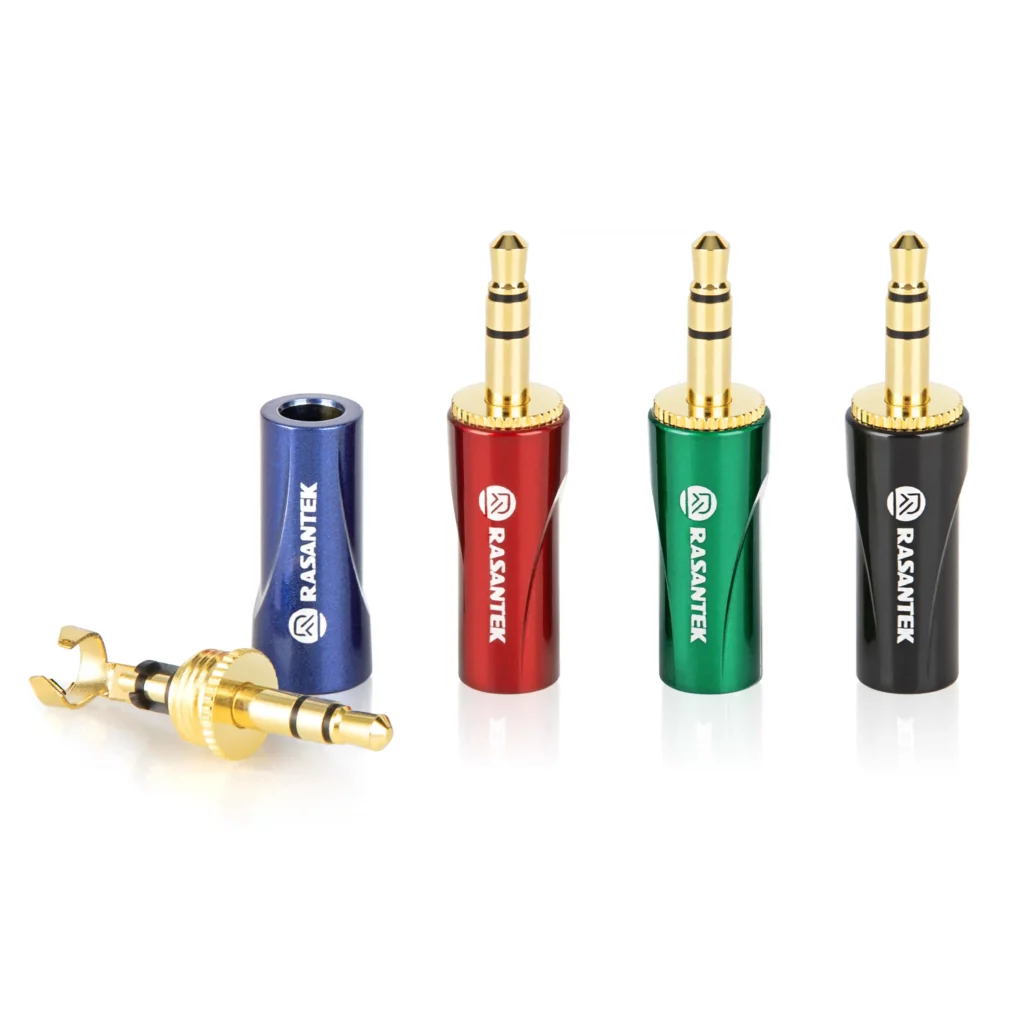

3.5mm audio plug quality
The material of 3.5mm connectors is usually chrome-plated iron or nickel-plated, while better quality ones are chrome-plated copper or nickel-plated copper; high-end ones are gold-plated copper; and audiophile-grade ones are rhodium-plated copper.
3.5mm wire plugs are generally gold-plated because gold-plated plugs have good conductivity and corrosion resistance, which can reduce signal loss and extend service life. The main purpose of adding the coating is to prevent oxidation. In addition, during use, avoid poor contact of the plug, which will cause signal attenuation or even interruption, affecting the sound quality.
3.5mm audio cable length
Although the length of the 3.5mm audio wire may seem insignificant, it has a certain impact on the sound quality. Generally speaking, the shorter the 3.5mm cable, the less signal transmission loss and the better the sound quality. This is because longer cables increase the distance of signal transmission, thereby increasing the possibility of signal attenuation. Therefore, judge the required 1/4″ audio cable length and try not to choose too long.
Some FAQs
What is the difference in sound quality between 3.5mm audio wires of different materials?
3.5mm audio cables of different materials, such as oxygen-free copper, silver-plated copper, single crystal copper, etc., have differences in conductivity, oxidation resistance, etc., which directly affect the sound quality. Generally speaking, silver-plated copper and single crystal copper have better conductivity and can bring clearer and more delicate sound.
Are there balanced and unbalanced 3.5mm audio cables?
Yes. Balanced audio cables can effectively reduce noise and improve the signal-to-noise ratio, and are suitable for devices with high sound quality requirements. Unbalanced audio cables have a simple structure and low cost.
Do 3.5mm audio cables need to be burned in?
There has always been controversy about whether audio cables need to be burned in. Some people believe that new audio cables need a certain amount of “burn-in” to reach the best condition. But the scientific basis is not sufficient.
What does burn-in mean?
In the audio field, burn-in usually refers to a saying that newly purchased audio equipment, such as headphones, speakers, audio cables, etc., need to be played continuously for a period of time when they are first used so that the internal components can reach a stable working state, thereby improving the sound quality.
How to maintain 3.5mm audio wire?
- Avoid excessive bending and pulling.
- Avoid contact with high temperatures and chemicals.
- Clean the plug and cable body regularly.
- Avoid knots when storing.
Conclusion
Selecting the right 3.5mm audio wire can significantly enhance your audio experience. This article provides a comprehensive guide, covering the structure, materials, and factors affecting the sound quality of 3.5mm audio cables. When choosing a cable, consumers should consider factors such as their devices, budget, usage environment, and personal preferences. By following the guidance in this article, you can select a satisfactory audio cable to enjoy higher quality music.
