Connecting your amplifier to speaker cable is essential for achieving the best sound quality in a home stereo system. This guide covers everything you need to know about amplifier to speaker cable connections, from choosing the right audio cables to ensuring proper installation for optimal performance.
Table of Contents
How To Connect Your Amplifier to Speaker Cable (Short Version)
- Turn Off and Unplug the Amplifier/Receiver: Ensure the amplifier or receiver is powered down and unplugged before starting.
- Connect Positive (Red +) Terminals: Attach the positive (red +) plug of the speaker cable to the positive (red +) terminal of the speaker. Connect the other end to the positive (red +) terminal of the amplifier/receiver
- Connect Negative (Black -) Terminals: Attach the negative (black -) plug of the speaker cable to the negative (black -) terminal of the speaker. Connect the other end to the negative (black -) terminal of the amplifier/receiver.
- Repeat for Additional Speakers: Follow the same steps for all remaining speakers in your system.
- Turn On the Amplifier: Once all connections are secure, power up the amplifier and enjoy your music.
If you are a new audiophile, please continue reading below for more details.
Turn Off the Power and Unplug Your Amp/Receiver Before You Disconnect or Connect Speakers and Components
To ensure both your safety and the protection of your equipment, it’s crucial to turn off the power to your stereo system’s amplifier or receiver and unplug it from the wall outlet before any operation. Even with modern amplifiers that have built-in protection features, it’s recommended to wait 30 seconds for the transformer to fully discharge, preventing potential damage from current flowing through components.
While this may not be a critical issue for modern equipment, taking extra precautions when handling any electrical devices is always wise. Before beginning any wiring work, make absolutely sure all components are completely powered down, as this effectively prevents electrical shorts and protects both your equipment and personal safety.
Connect Speaker Cable to Speaker Terminals
When it comes to Speaker/Amplifier Terminals types, banana plugs are among the most common and user-friendly options for connectivity. These connectors offer a straightforward installation process – you simply need to insert the plug into the corresponding slot for a secure connection.
If you have other speaker plug types, read on Speaker Wiring Guide: Everything You Need to Know.

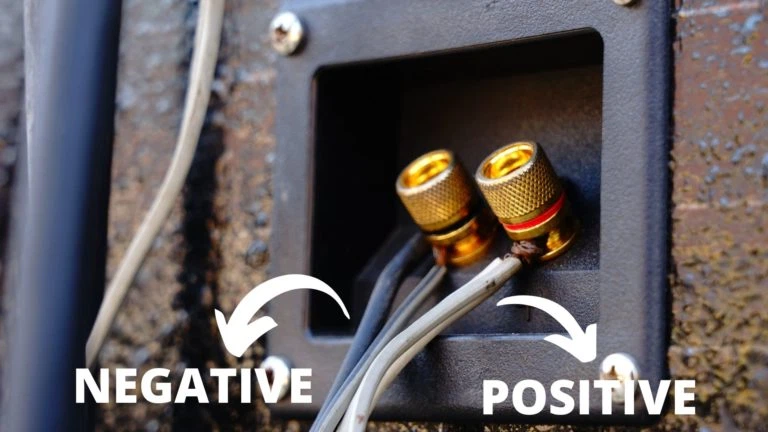

Connect one end of the positive (red +) conductor to the positive (red +) terminal on the speaker. Repeat this process for the negative (black -) conductor, connecting it to the negative (black -) terminal on both the speaker and the amplifier/receiver. For multiple speakers, repeat the above steps for each additional speaker.
If you want to DIY your own speaker wire, it is recommended to choose a screw-locking banana plug, which is easier to operate. Specific operation method-How To Install Banana Plugs With Speaker Wire?
What's the Best Speaker Cable/Speaker Wire?
The best speaker cable for your setup depends on your needs. Look for cables with good conductivity, such as oxygen-free copper. Choose materials with proper insulation, inner wire core, and speaker wire guage (thickness) for durability.
There is debate among audiophiles about whether high-end speaker cables and audio cables are really important. But there is no denying that high-quality speaker cables ensure efficient signal transfer from the amplifier to the speakers, thereby improving audio performance.
What Speaker Wire Gauge Do I Need?
The speaker wire gauge determines the thickness of the speaker cable and its capacity to carry signals. For short distances, 16-gauge speaker wire works well. For longer runs, consider thicker 12-gauge speaker cables. Using the right gauge minimizes resistance and ensures your amplifier delivers clean power to the speakers. – Speaker Wires Guide ( Gauge, Length, and Type)
Passive Speaker Connection Plug Types
Choosing the right coaxial cable connectors is critical for ensuring optimal performance and reliability in your application. Here are the key factors to consider:
Banana Plugs
Banana plugs simplify connecting speaker cables to your amplifier. These connectors provide a secure and easy-to-use solution. Simply insert the plug into the binding post, and you’re ready. Banana plugs ensure a tight fit, reducing signal loss and improving audio quality.
- Ensure both the amplifier and speakers are powered off
- Identify the positive (+) and negative (-) terminals on both the amplifier and speakers
- Unscrew the outer barrel of the banana plug
- Strip about 1/2 inch of insulation from the speaker wire end
- Insert the stripped wire through the plug’s barrel
- Twist the exposed wire strands tightly
- Insert the wire into the banana plug’s center pin
- Screw the barrel back on to secure the wire
- Insert the banana plug into the corresponding terminal on the amplifier and speaker. If you have already installed the speaker cable, start this step directly.Red plug into red/positive (+) terminal; Black plug into black/negative (-) terminal
Binding Post Terminals
Binding post terminals are standard on most amplifiers and speakers. They accommodate bare wire, banana plugs, and spade connectors. This versatility makes them a popular choice for wiring a home stereo system. Properly tightened binding posts ensure a stable connection and excellent sound.
- Power off all equipment
- Strip approximately 1/2 inch of insulation from the wire ends
- Unscrew the binding post caps (they don’t need to be removed completely)
- Look for the small hole in the binding post’s center shaft
- Choose your connection method:
Option A: Insert bare wire through the hole in the post
Option B: Form the stripped wire into a ‘U’ shape and wrap around the post - Tighten the binding post cap firmly
- Ensure no stray wire strands are touching adjacent terminals
- Connect both positive and negative terminals
- Double-check polarity matching
- Repeat for remaining speakers
Spring Clips
Spring clips are a budget-friendly option found on entry-level audio equipment. To connect speaker cables, press down on the clip, insert the wire, and release it. While they’re easy to use, spring clips may not provide as secure a connection as binding posts or banana plugs.
- Ensure all equipment is powered off
- Strip about 1/4 inch of insulation from the wire ends
- Twist the exposed wire strands together tightly
- Press down on the spring clip to open the connection point
- Insert the stripped wire into the opening while holding the clip down
- Ensure no stray wire strands are visible, wire should be fully inserted
- Release the clip to secure the wire, gently tug on the wire to verify it’s secure
- Match polarity:
Red/copper wire to red clip
Black/silver wire to black clip
Deadbolt Flex Banana Plugs
Deadbolt Flex Banana Plugs offer a premium connection solution. These innovative plugs feature a flexible design for easy installation. They provide a strong grip on the binding posts, ensuring maximum signal transfer from your amplifier to speakers for superior audio performance.
Some FAQs
Can you plug banana plugs into speakers?
Yes, you can use banana plugs with speakers that have compatible binding posts. Most modern speakers and amplifiers come with binding posts that accept banana plugs, though some entry-level models might only have spring clips.
Are banana plugs worth it for speakers?
Yes, they’re worth the investment because they provide secure connections, prevent wire fraying, make disconnecting/reconnecting easier, and offer a cleaner look. They’re especially valuable if you frequently move or adjust your audio setup.
Are banana clips good for speakers?
Yes, banana plugs (also called banana clips) are excellent for speakers. They ensure consistent electrical contact, reduce the risk of short circuits, and make wire management neater. They’re widely used by audio professionals and enthusiasts.
Are there different size banana plugs for speakers?
The standard banana plug size is 4mm in diameter, which is universal for audio equipment. While there are other banana plug sizes used in electronics testing, the 4mm size is the standard for speaker connections and home audio equipment.
Conclusion
Wiring a home stereo system involves understanding key concepts like choosing the right speaker cable, matching polarity, and using proper connection plugs. By following these steps, you can ensure your amplifier to speaker cable setup delivers optimal sound quality. Connect speakers to an amplifier confidently with this guide to achieve the best audio experience.
