Speakers as the core components of the audio system, the correctness of its wiring for the sound quality and stable operation of the system is critical. This article will introduce the speaker wiring methods in detail, including mono, dual-channel and multi-channel speaker wiring, but also will explore the speaker wiring process of attention and common problems. Through the study of this article, readers will be able to master the basic skills of speaker wiring, to build a high-quality sound system to lay the foundation.
Table of Contents
Introduction
Speakers are responsible for converting electrical signals into acoustic signals in the audio system, and the correctness of their wiring is crucial to the clarity of the sound quality and the stable operation of the system. Wrong wiring may lead to sound distortion, speaker damage or even the whole system can not work properly. Therefore, understand and master the speaker wiring method is every audio enthusiasts or professional installers must have the skills. In this article, we will explain in detail the wiring method of speakers through a combination of illustrations to help readers better understand and operate.
Speaker wiring basics
Speaker wiring is a highly technical work, the overall effect of the audio system has a direct impact. Before doing it, it is necessary to have an in-depth understanding of the Types of Speaker/Amplifier Terminals, the characteristics of audio cables and the use of wiring tools. Only mastered these basic knowledge, in order to target the selection of appropriate equipment, to avoid improper operation and damage to equipment or affect the sound quality.
Types of Speaker/Amplifier Terminals
In the following section, I will detail the different connection and installation methods you may encounter when wiring your speakers.

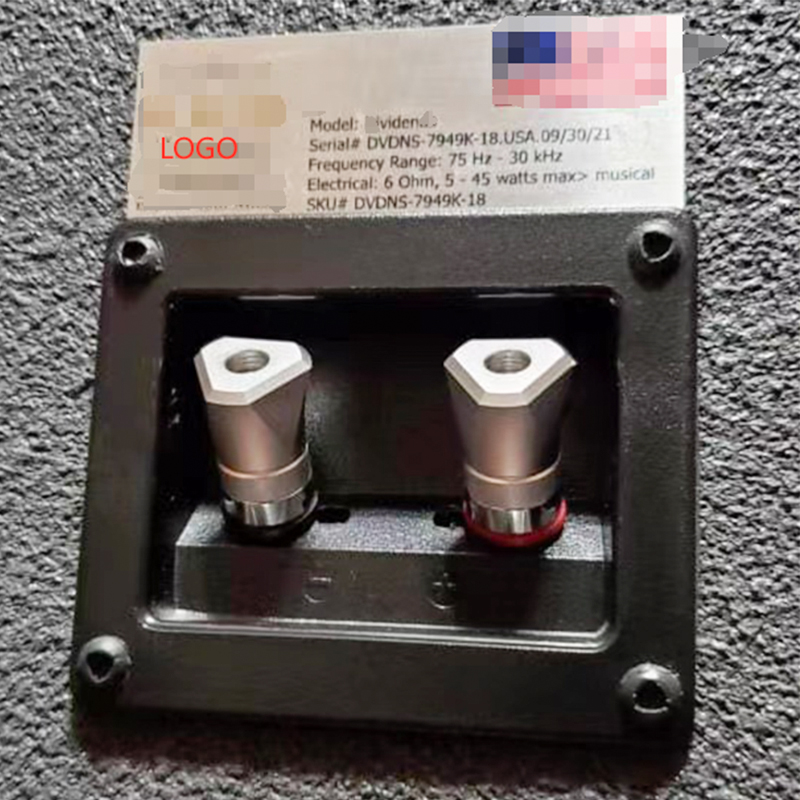

Binding Post
Binding posts are the terminals found on many audio components, such as receivers, amplifiers, and speakers, that allow you to securely connect speaker wires. There is a hole in the side of the post (perpendicular to the post) and a hole at the end of the post. Often color-coded (red for positive, black for negative), binding posts provide a versatile connection method. They accommodate various types of speaker wire terminations, including bare wire, banana plugs, spade connectors, and pin connectors.
How to use binding posts with bare wire?
- Strip the wires: Strip approximately 12mm (1/2 inch) of insulation from the end of each speaker wire.
- Twist the wires: Twist the bare copper strands of each wire together tightly.
- Loosen the post: Unscrew the nut on the binding post to expose the central hole.
- Insert the wire: Carefully insert the stripped and twisted wire into the central hole of the binding post.
- Ensure correct polarity: Make sure to connect the red wire to the positive terminal (usually marked with a “+” or “red”) and the black wire to the negative terminal (usually marked with a “-” or “black”).
- Tighten the post: Tighten the nut firmly to secure the wire in place.
- Repeat for the other end: Repeat these steps for the other end of the speaker wire, connecting it to the corresponding terminal on the speaker or amplifier.

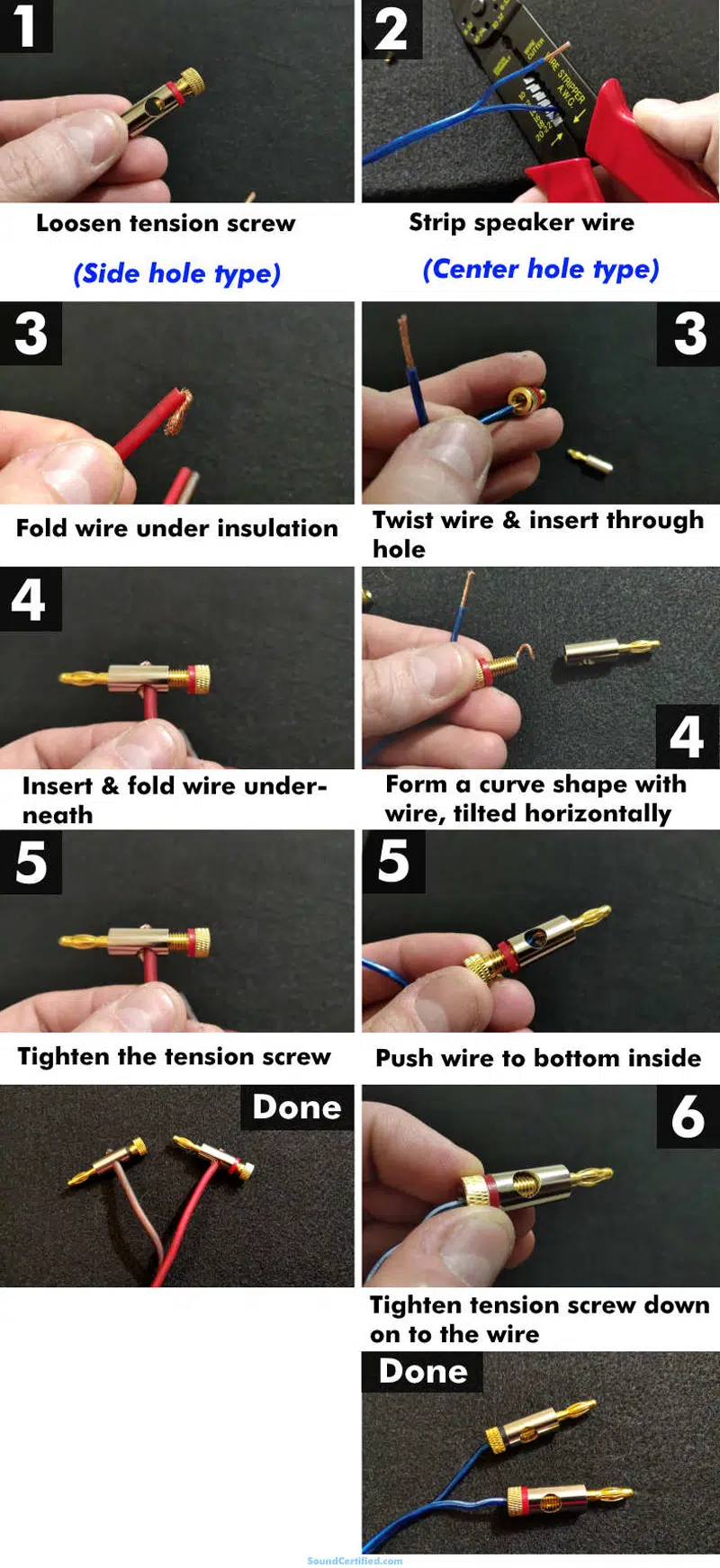

Sourced from SoundCertified, clearly demonstrates how to connect bare wires to binding posts
When using banana plug connectors, insert them into the hole at the end of the binding post for a secure connection. Tighten the nut to firmly hold the connector in place. Note that some binding posts have caps that cover the hole. If present, remove these caps before inserting the banana plugs.
Spring Clips Speaker Terminals
Spring clips are another type of connector that you may come across. Also are a common type of speaker terminal found on many consumer amplifiers and speakers. These simple, spring-loaded clamps offer easy connection for bare wires or pin connectors. To use them, you simply press the button above or below the clip and insert the wire. Releasing the button secures the connection. While convenient and tool-free, spring clips may not be suitable for thicker wires or banana plugs, and the connection might not be as secure as that provided by binding posts.
How to use spring clips with bare wire?
- Strip the wires: Remove about 12mm (1/2 inch) of insulation from the ends of your speaker wires using a wire stripper.
- Press and insert: While gently pressing down on the spring-loaded tab, carefully insert the bare wire into the slot of the clip.
- Match polarity: Ensure the red wire is inserted into the red (positive) terminal and the black wire into the black (negative) terminal.
- Release the tab: Release the spring-loaded tab to securely hold the wire in place.

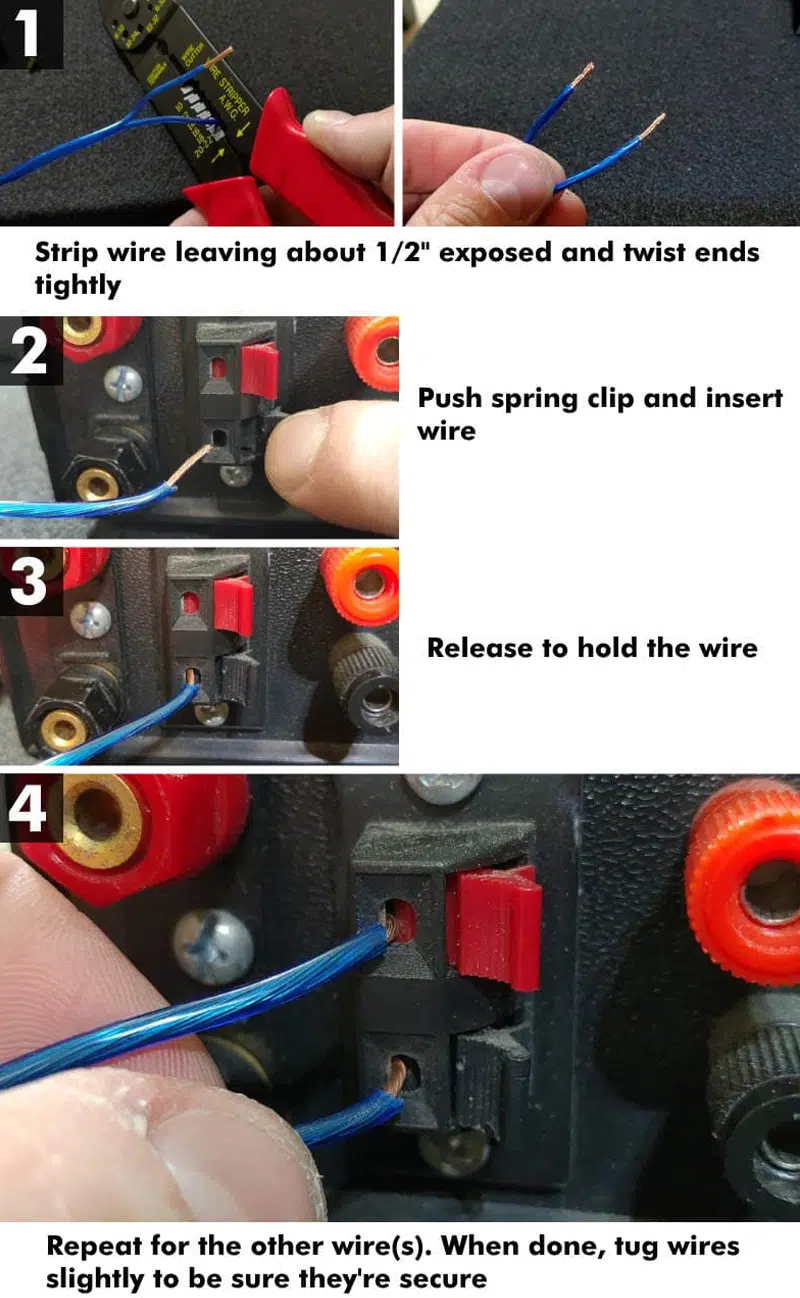

Sourced from SoundCertified, clearly demonstrates how to connect bare wires to Spring Clips
Banana Plugs
Banana plugs are special plugs that look like bananas and are used to connect speaker wires to audio equipment. They make it easy to connect and disconnect your speakers. You can use banana plugs with binding posts, but not with spring clips.
To learn more about banana plugs and see our recommendations, check out our article, “How To Install Banana Plugs With Speaker Wire?”,”Clean Banana Plugs Guide“.
Type of Speaker wire
There are usually two types of wires used for speaker wiring, ordinary wires and hifi audio wires. Dedicated audio wire has better conductivity and anti-interference ability, more suitable for audio systems.
Ordinary wires
Generally used for household electricity or other non-audio equipment connections. This type of wire is usually poor conductivity, prone to signal attenuation and distortion, and anti-interference ability is weak, used in high-quality audio systems may affect the sound quality.

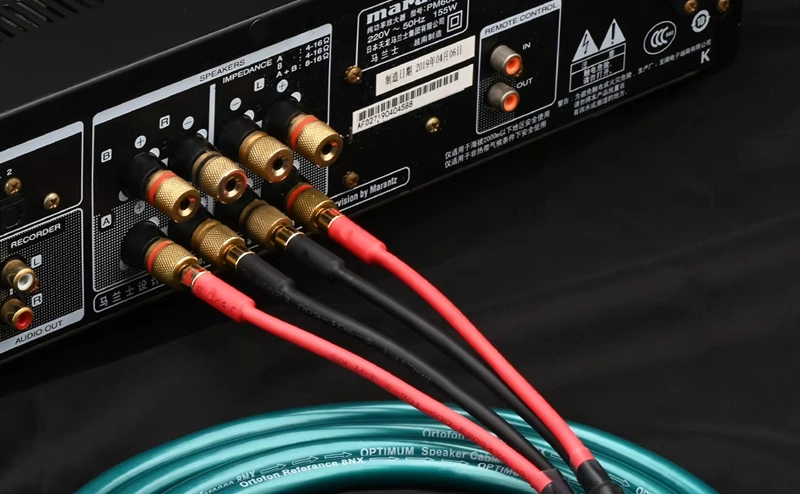

Hifi audio cables
Specifically designed for audio systems, made of high-purity oxygen-free copper or other high-conductivity materials, with excellent conductivity, can minimise signal loss. At the same time, audio cables are usually shielded to effectively reduce external electromagnetic interference and ensure the purity of signal transmission. High-end audio cables are important for sound quality, check out our article, “Why Hi-end Speaker Cable And Audio Cable Matter?” So it is important to choose the right speaker cable!
Speaker Wiring tools
When carrying out speaker wiring, preparing the right tools can greatly improve the efficiency and quality of the connection. Commonly used tools include:
- Wire strippers: Used to strip the outer skin of the wire to expose the conductor, so as to make connections. Choose a suitable specification of wire strippers, you can easily strip the wire of different wire diameter.
- Screwdriver: Used to tighten the screws on the terminals to ensure a secure connection. Prepare different sizes of screwdrivers to deal with various types of terminals.
- Soldering station: If soldering is required, you will need a soldering station, solder wire and flux. Soldering provides a stronger connection, but requires some skill.
- Nose pliers: Used to bend wires or hold small parts for ease of handling.
- Insulation tape: Used to wrap exposed wires to prevent short circuits and poor contact.
Mono Speaker Wiring Methods
Mono speakers are the simplest sound system configuration and usually only one speaker is needed. Below we will introduce the wiring method for mono speakers.
Banana plug wiring: If the speaker adopts banana plug interface, just insert the bare part of the wire into the banana plug, and then insert the plug into the corresponding interface of the speaker.
Bare wire wiring: If the speaker uses bare wire interface, you need to use wire strippers to strip the insulation of the wire to a length, and then the bare copper wire part of the wire around the speaker’s terminals, and fixed with a screwdriver.
dual-channel speaker wiring method
Dual-channel speaker system consists of two independent channels, usually used to achieve stereo effect. Here we will introduce the dual-channel speaker wiring method.
Separate left and right channels: In a two-channel system, it is necessary to ensure that the signals from the left and right channels are transmitted to the corresponding speakers. This is usually achieved by marking the left and right channels separately on the amplifier and speakers.
Use special audio cables: For better sound quality, it is recommended to use special audio cables for the wiring of two-channel speakers. These audio cables usually have a thicker wire diameter and better conductivity, which can effectively reduce the loss of signal transmission process.
Wiring steps: First, connect the left and right channel output terminals on the amplifier to the corresponding speaker input terminals. When connecting, pay attention to the use of the correct type of interface and wiring tools to ensure a firm and reliable connection. Next, check if the wiring is correct. Finally, switch on the amplifier and play the test audio to observe whether the left and right channel speakers are working properly.
multi-channel speaker wiring method
Multi-channel speaker systems usually include multiple independent channels, such as 5.1 channels, 7.1 channels and so on. These systems are usually used in home theatre, gaming entertainment and other scenarios. Below we will introduce the wiring method of multi-channel speakers.
Determine the channel layout: In a multi-channel system, you need to determine the position of each speaker according to the room size and layout. Typically, the front speakers are responsible for the main sound output, while the rear, centre and side speakers are used to enhance sound and create a sense of immersion.
Using amplifiers and processors: In order to drive multiple speakers and achieve complex sound processing, multi-channel amplifiers and audio processors are required. These devices usually have multiple output channels that can be connected to separate speakers.
Wiring procedure: First, connect the output terminals of the amplifier or processor to the input terminals of each speaker. As multi-channel systems are more complex, it is recommended that detailed planning and labelling be carried out before wiring. Secondly, use suitable wires and wiring tools to make the connections and ensure that they are firm and reliable. Finally, check whether the wiring is correct and test.
Some FAQs
What is the proper way to wire speakers?
To wire speakers correctly, ensure you match the positive (+) and negative (-) terminals on your speakers to the corresponding terminals on your amplifier. This preserves the polarity of the audio signal and ensures accurate sound reproduction. Always consult your amplifier’s manual for specific instructions, as connections may vary.
Which is positive and negative on speaker wire?
The positive and negative terminals on a speaker wire are usually marked with a “+” or “red” for positive, and a “-” or “black” for negative. However, as mentioned earlier, colors can vary, so it’s crucial to double-check the markings on your equipment.
Does the length of speaker wire affect sound?
Yes, the length of speaker wire can affect sound quality. Longer cables can introduce more resistance, which can lead to a slight loss of high frequencies and a reduction in overall volume. However, for typical home audio setups, moderate cable lengths won’t significantly impact sound quality. Extremely long runs or cables of poor quality can introduce noticeable degradation.
What happens if you mix up positive and negative speaker wires?
- Reduced bass: The low frequencies may be less pronounced.
- Muddy or unclear sound: The overall sound may seem muddy or lacking clarity.
- Reduced soundstage: The sense of space and depth in the sound may be diminished.
Conclusion
In conclusion, proper speaker wiring is essential for achieving optimal sound quality. By understanding the importance of polarity, cable quality, and connection types, you can ensure that your audio system delivers the best possible listening experience. Remember to always consult your amplifier and speaker manuals for specific instructions, and if you’re unsure, seek professional assistance.
