While most audio cables and wires are primarily concerned with length and speaker connector compatibility, speaker wire requires a more nuanced approach. Understanding speaker cable gauge is crucial for achieving optimal audio performance.
For more information on speaker cable gauge, please read Speaker Wires Guide – Gauge, Length, and Type.
Table of Contents
Understanding Speaker Wire Gauge
Speaker cable gauge refers to the thickness or diameter of the wire used to connect audio speakers to an amplifier or receiver. It’s often measured using the American Wire Gauge (AWG) system, where a lower gauge number indicates a thicker wire.
The higher the AWG number, the thinner the wire. This might seem counterintuitive, but it’s a standard way to measure wire gauge. So, a 12-gauge wire is thicker than an 18-gauge wire.
The most common speaker wire gauges are 12 guage, 14 guage, 16 guage, and 18 gauge. The thickness of the wire directly impacts the overall resistance of your speaker circuit, which in turn affects the power transfer between your amplifier and speakers.
For most home audio setups, 14-gauge or 16-gauge wire is the best speaker cable gauge, but for high-end systems or longer cables, 12-gauge wire may be more appropriate.
Resistance is the resistance to the flow of electric current. The thickness of the speaker wire directly affects its resistance value. The thicker the speaker wire (the smaller the gauge number), the lower the resistance and the more current it can carry. This helps reduce signal loss during transmission, thereby ensuring pure sound quality, especially in long-distance transmission or high-power audio systems.
How Speaker Wire Gauge is Measured
Understanding Speaker Measuring Wire Gauge

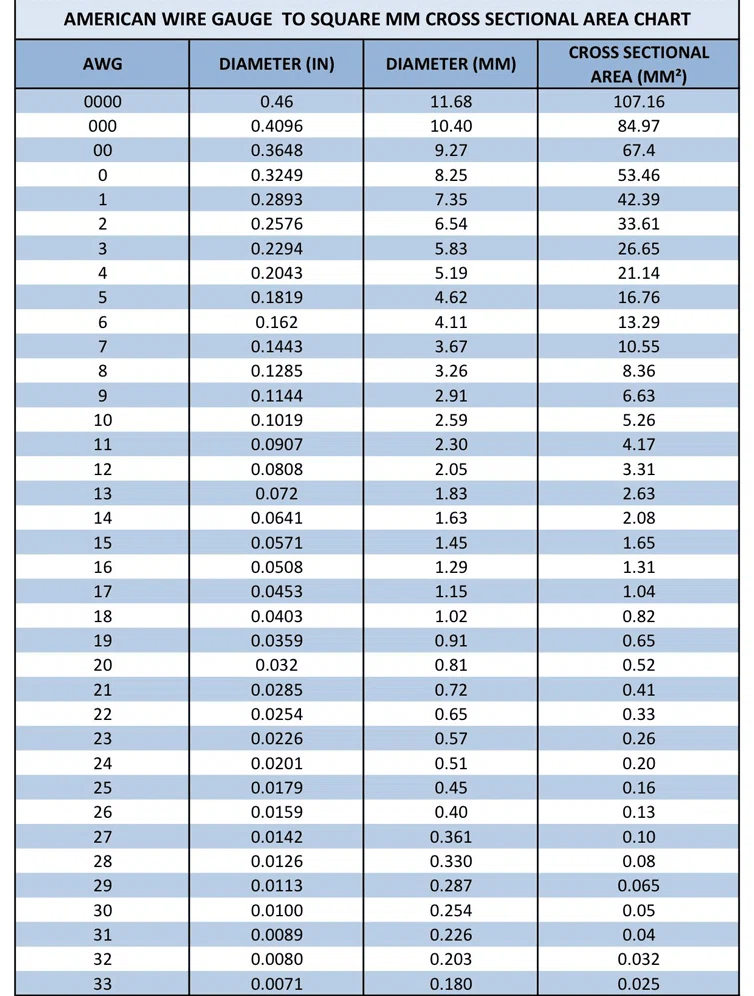

American Wire Gauge (AWG) is a standard based on the cross-sectional area of a wire, used to measure the thickness of a wire. The larger the AWG value, the thinner the wire and the greater the resistance; the smaller the value, the thicker the wire and the lower the resistance. This measurement method can more accurately reflect the conductive properties of the wire. When selecting speaker wire, choosing the appropriate AWG value based on the power requirements of the sound system and the cable length can ensure the purity and stability of the sound quality. The wide application of the AWG system allows us to select the appropriate wire according to different application scenarios, thereby optimizing the performance of electronic devices.
Several Common Methods for Measuring Wire Gauge
The accuracy of measuring speaker wire gauge is directly related to the optimization of sound quality. The following introduces several commonly used measurement methods and explains them in detail in combination with actual application scenarios:
Using a speaker cable gauge table

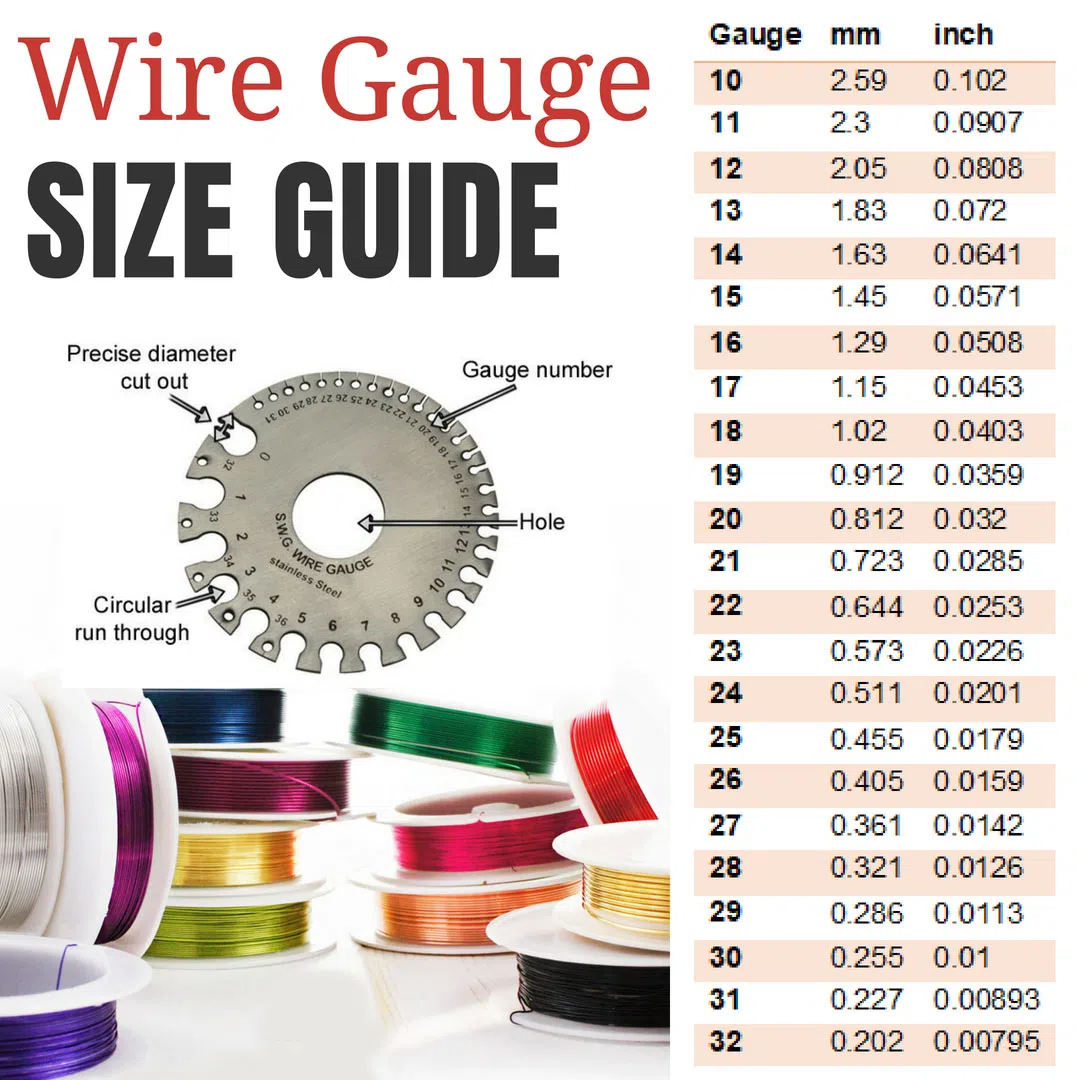

A wire gauge table is a set of metal plates with holes of different diameters. By inserting the wire into the hole and finding the tightest hole, the corresponding wire gauge can be read. Take the average of multiple measurement data to improve accuracy. Select the part of the wire that is straight, joint-free, and kink-free for measurement. Wire gauge tables are available in a variety of specifications. Select a wire gauge table that matches the diameter range of the wire being measured. It is simple and intuitive to operate, and is the most common method for home users.
Using a micrometer
The micrometer measures the diameter of the wire through a precision mechanical structure with high accuracy. Using a micrometer requires certain skills to ensure that the measuring force is uniform and avoid damaging the wire. The micrometer needs to be calibrated regularly to ensure the accuracy of the measurement structure.
Using a digital vernier caliper
The digital vernier caliper combines the characteristics of a vernier caliper and an electronic display, with simple operation and high accuracy. The measurement unit of a digital vernier caliper is usually millimeters, which need to be converted according to the wire gauge comparison table. Select the appropriate measurement range according to the wire diameter. It is easy to read and has high accuracy, suitable for various measurement scenarios.
Use a wire diameter gauge
A wire diameter gauge is an instrument specifically used to measure the diameter of a wire. It is simple and fast to operate. Choose a suitable measuring range: Choose a suitable measuring range according to the wire diameter. Calibrate the wire diameter gauge regularly. It is simple to operate, fast to measure, and suitable for batch measurement.
Use a wire diameter comparison table
First, use a ruler to measure the diameter of the wire, and then refer to the wire diameter comparison table to find the corresponding wire gauge. Although this method is relatively simple and does not require special tools. However, compared with other methods, it has lower accuracy and is suitable for occasions where accuracy is not required.
Which measurement method you choose depends on your measurement needs and the tools you have. For home users, using a wire gauge is the most convenient method; for those who pursue high-precision measurements, you can use a micrometer or digital vernier caliper. During the measurement process, pay attention to choosing the right tools, mastering the correct measurement methods, and paying attention to the influence of environmental factors to get accurate measurement results.
Things to note when measuring:
- Ambient Temperature: Temperature changes can affect the diameter of the wire, so pay attention to the ambient temperature when measuring.
- Wire Material: The wire diameter measurement method for wires of different materials may be slightly different.
- Wire Gauge Standard: There are many wire gauge standards, the most common ones include American Wire Gauge (AWG) and millimeters. When measuring, be clear about which standard is used.
Importance of Speaker Cable Gauge
The wire gauge of speaker wire, that is, the thickness of the wire, has a crucial impact on the performance and safety of the sound system. Choosing the right wire gauge can not only ensure the purity and stability of the sound quality, but also effectively avoid safety hazards.
Speaker wire gauge, measured in American Wire Gauge (AWG), significantly impacts the sound quality of your audio system. A lower gauge number indicates a thicker wire, which offers several advantages:
Reduced Signal Loss
Thicker wire has lower resistance, which minimizes signal attenuation over long distances. When you use wire with a larger cross-sectional area, you are safer in terms of overheating issues. This ensures that the audio signal reaches the speaker with higher fidelity.
Improved Power Handling
Lower gauge wire can handle higher power output, making it ideal for high-power systems and systems with longer cables. Lower gauge (larger diameter) speaker wire can carry more power than larger gauge wire. Generally speaking, lower AWG numbers are better than higher AWG numbers.
Long-distance Equipment
Choosing the right AWG is also an important factor when it comes to long-distance audio equipment. In addition, it helps prevent internal breaks in the cable when it needs to be coiled, bent, pulled, or otherwise handled. Stranded wire is also more resistant to bending and breaking than solid wire.
Enhanced Bass Response
Thicker wire can better transmit low-frequency signals, resulting in a stronger and more defined bass response. When you use speaker wire with a lower AWG, you may increase the physical strength of the wire.
Key Considerations for Selecting Speaker Wire Gauge
To ensure optimal audio performance, several factors must be considered when selecting speaker wire gauge, including impedance, cable length, amplifier power, and desired sound quality.
Impedance of the Speaker
The impedance of your speakers plays a significant role in determining the optimal speaker wire gauge. Impedance, measured in ohms, reflects a speaker’s resistance to electrical current. Here’s a breakdown of how speaker impedance influences wire gauge selection:
- Lower Impedance (4 ohms or less):Requires thicker gauge wire (14-gauge or 12-gauge) to handle higher current demands.
- A 16-gauge wire can be a good compromise for 6-ohm speakers.
- Higher Impedance (8 ohms):Generally requires thinner gauge wire (18-gauge or 16-gauge).
However, for longer cable runs (50 feet or more), consider upgrading to a thicker gauge (12-gauge or 14-gauge) to minimize signal loss.
By understanding the relationship between speaker impedance and wire gauge, you can ensure optimal audio performance and prevent potential issues like signal loss and power limitations.
Length of Speaker Wire
The length of your speaker wire plays a significant role in determining the optimal gauge. As the cable length increases, so does the resistance within the wire. This increased resistance can lead to signal loss, diminished sound quality, and potential power limitations.
For most standard home theater setups with relatively short cable runs, a 14-gauge or 16-gauge wire is sufficient. However, for longer runs, such as those required for outdoor speakers or in-wall installations, it’s advisable to opt for a thicker gauge like 12-gauge or even 14-gauge to minimize signal loss.
To calculate the required cable length:
Measure the straight-line distance between the amplifier and each speaker.Add an extra 5 feet to each measurement to account for potential slack and installation needs.
Speakers' Power Requirements
A crucial factor in selecting the appropriate speaker wire gauge is the power handling capacity of your speakers. Higher-powered speakers demand thicker gauge wire to handle the increased electrical current without significant signal loss or overheating.
To determine the optimal wire gauge, consult your speaker’s specifications or contact the manufacturer. They can provide specific recommendations based on the speaker’s power rating and impedance.
- Lower-Powered Speakers: For speakers with moderate power ratings, a 16-gauge wire is often sufficient.
- High-Powered Speakers: High-powered speakers, especially subwoofers, may require a 12-gauge or even 10-gauge wire to handle the increased current demands.
Audio Quality Desired
If you are an audiophile or have a high-fidelity audio system, employing thicker wire (lower gauge numbers) may help you.
Lower resistance in thicker cable means less signal loss and better audio signal transfer, potentially leading to better audio quality.
Thinner wire (higher gauge values) may be suitable for average home audio systems, and any difference in audio quality may be imperceptible.
We may spend a great fortune when we are selecting speakers, but the speaker wires also cannot be ignored.
Some FAQs
What does speaker cable gauge mean?
Speaker cable gauge refers to the thickness of the conductor within the cable, typically measured in American Wire Gauge (AWG). A lower AWG number indicates a thicker conductor.
How does speaker cable gauge affect sound quality?
A thicker gauge (lower AWG) generally allows for higher current capacity, reducing voltage drop and improving bass response. However, other factors like cable length, material, and system impedance also play a role.
What gauge speaker cable should I use?
The optimal gauge depends on factors such as amplifier power, speaker impedance, and cable length. Consult your amplifier and speaker manuals or consult with an audio professional.
Can I use different gauge speaker cables for my speakers?
It’s generally recommended to use the same gauge for all speakers connected to an amplifier to maintain a balanced system. However, in some specific cases, slight variations might be acceptable.
What is the difference between stranded and solid core speaker cables?
Stranded cables are made of multiple smaller conductors, offering greater flexibility and resistance to breakage. Solid core cables are made of a single conductor, which can be more rigid but may offer slightly better conductivity.
How long should my speaker cables be?
Measure the length between the devices and finally add an extra 1-2 feet (about 30-60 cm). Keep the speaker cables as short as possible to minimize signal loss.(Speaker Wires Guide – Gauge, Length, and Type)
Conclusion
Difference speaker wires affect much for the sound quality, and different speaker cable connectors also affect the audio quality. The more you understand those accessories in an audio setup, the better sound system you will get.
