In the world of professional audio and high-end home systems, XLR balanced cable is often considered the gold standard for signal transmission. Whether you’re setting up a recording studio, configuring a live sound system, or building an audiophile-grade home setup, understanding how these cables work and when to use them can significantly impact your audio quality.
Table of Contents
What is XLR Balanced Cable?
XLR cables are recognizable by their distinctive connectors featuring male and female ends with three pins. Unlike conventional RCA cables (often called “unbalanced” cables), XLR cables utilize a balanced audio connection design. Each connector houses three pins that connect to three dedicated wires within the cable:
- Two signal wires that carry the audio
- One ground wire that provides shielding against interference
The defining characteristic of XLR balanced cable is how they handle signal transmission. Both signal wires carry identical audio information but with opposite polarity – one wire carries a positive signal, while the other carries the inverse negative signal. This creates what audio engineers call a “differential connection.”
The Science Behind Noise Cancellation
The genius of balanced XLR cable lies in their ability to effectively eliminate noise through a clever application of wave theory.
When audio travels through a cable, it inevitably encounters electromagnetic interference (EMI) and radio frequency interference (RF) from surrounding electronics, power cables, and other sources. In a conventional unbalanced cable, this noise gets added to the signal and becomes part of what reaches your equipment.
In balanced XLR cables, however, something remarkable happens:
- Both signal wires pick up the same environmental noise

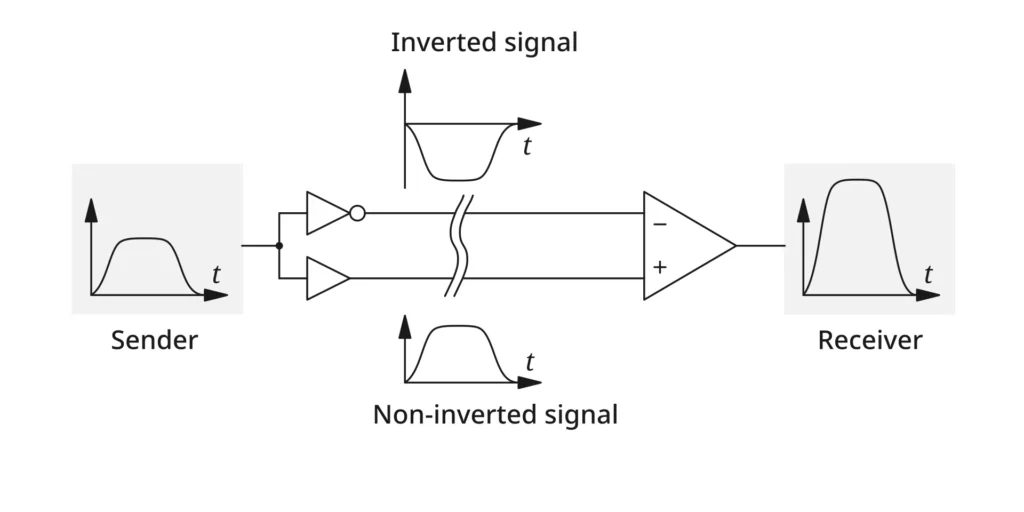

- When the signal reaches the receiving equipment, one of the signals is inverted
- The two signals are then combined
Since the original audio signals were already opposite in polarity, inverting one of them brings them into perfect alignment – they add together and become stronger. However, since the noise on both wires was identical (and not opposite), when one signal is inverted, the noise components become opposite in phase. When these noise components are added together, they cancel each other out completely – a phenomenon known as common-mode rejection.
The result is a significantly cleaner signal with a lower noise floor, especially over longer cable runs where interference would normally be more problematic.
When to Choose XLR Balanced Cable?
While XLR cables offer superior noise rejection, they aren’t always necessary for every audio application. Consider using XLR balanced cables in these scenarios:
In balanced connections, an XLR connector contains a positive conductor and a negative conductor that are phase-inverted in a differential system. The ground in an XLR connector (comprised of the shield and pin 1) is separate from the electronics driving the positive and negative pins.
Long Cable Runs
For distances exceeding 10 feet, balanced cables provide significant advantages in maintaining signal integrity. The longer the cable, the more opportunity for interference to accumulate.
Professional Recording Environments
Studios require clean, noise-free signals, particularly for low-level sources like microphones. The balanced design of XLR cables is ideal for preserving these delicate signals.
High-Interference Environments
If your audio equipment is near power transformers, computers, lighting systems, or other sources of electromagnetic interference, balanced connections can dramatically reduce unwanted noise.
High-Performance Audio Systems
Many high-end audio components include balanced XLR connections specifically because they provide superior noise rejection and signal purity.
Quality Matters: What Makes a Good XLR Cable
Not all XLR cables are created equal. When shopping for best xlr balanced cables, look for these quality indicators:
- High-quality conductors: Premium-grade copper ensures optimal signal transmission
- Gold-plated connectors: 24K gold plating prevents corrosion and ensures excellent conductivity
- Multiple layers of shielding: Both individual conductor shielding and outer cable shielding provide maximum protection against interference
- Robust construction: Durable connectors and protective outer jackets extend cable life
- Independent insulation: Properly insulated conductors prevent signal bleed and interference
Balanced XLR vs. Unbalanced RCA: Making the Right Choice
For most home audio applications with short cable runs and minimal interference, quality unbalanced RCA cables will perform admirably. However, as systems become more sophisticated or challenging environments arise, the benefits of balanced XLR connections become increasingly valuable.
Read the RCA Cable vs. XLR Cable article for more details.
| Feature | RCA Cable | XLR Cable |
|---|---|---|
| Type | Unbalanced | Balanced |
| Pins | 1 (Signal) + 1 (Ground) | 3 (Pin 1: Ground, Pin 2: Positive, Pin 3: Negative) |
| Usage | Consumer audio, home theater, video | Professional audio, microphones, studio equipment |
| Durability | Less durable, prone to noise | More durable, resistant to noise |
| Cable Length | Shorter distances (prone to interference) | Longer distances (less interference) |
| Common Applications | Hi-Fi systems, TVs, gaming consoles | Live sound, studio recording, PA systems |
Remember the audiophile adage: your system is only as good as its weakest link. While cables shouldn’t be the most expensive component in your setup, choosing the right type for your specific application ensures you’re getting the best possible performance from your equipment.
Some FAQs
What is a balanced jack cable?
A balanced jack cable uses two conductors and a ground wire, designed to carry audio signals with reduced noise and interference, commonly used in professional audio setups.
Is a 4-pin XLR always balanced?
Yes, a 4-pin XLR cable is typically used for balanced audio signals, often for stereo or multi-channel audio transmission.
Can I use a balanced cable in an unbalanced jack?
Yes, you can use a balanced cable with an unbalanced jack, but the advantages of noise reduction won’t be utilized. You may need an adapter.
Do balanced cables eliminate hum?
Balanced cables significantly reduce hum and interference, especially over long distances, but they do not fully eliminate all noise sources.
Why don’t guitars use balanced cables?
Guitars typically use unbalanced cables due to their high impedance and the nature of electric guitar signals, which are more compatible with unbalanced connections.
Does 4.4mm balanced make a difference?
Yes, a 4.4mm balanced cable can provide better sound quality with improved signal clarity, lower distortion, and reduced noise when used with compatible equipment.
Conclusion
XLR balanced cables represent a brilliant engineering solution to the persistent problem of noise in audio transmission. By leveraging the principles of wave physics, these cables effectively eliminate common-mode noise while preserving signal integrity – making them the preferred choice for professionals and serious audio enthusiasts alike.
Whether you’re recording a whispered vocal or reproducing the full dynamic range of an orchestra, the clean signal path provided by quality balanced connections ensures that what you hear is the pure, unadulterated sound – exactly as it was meant to be experienced.
