Coaxial cable connectors are essential components in modern communication systems, enabling efficient and reliable transmission of signals across a variety of applications. From residential setups like television and internet to advanced industrial and military systems, these coax connectors ensure minimal signal loss and interference. Understanding the wide range of coaxial connector types, their features, and their applications is critical for optimizing performance in any system. This guide provides a comprehensive overview of coaxial cable connectors, helping you make informed choices for your specific needs.
Table of Contents
What Is a Coaxial Cable?
Common Coaxial Cable Sizes
Coaxial cables come in various sizes to accommodate different applications, such as RG-6 for home TV setups and RG-58 for radio frequency (RF) systems. The size and type of coax cable determine its signal loss, power capacity, and suitability for specific uses.
- RG-6: These coaxial cables feature broad central conductors, thick insulation, and specialized shielding, enabling strong signal transmission. Despite their robust performance, RG-6 cables are relatively thin, making them ideal for installations in ceilings and walls, such as in-home television and internet setups.
- RG-11: Known for their thicker construction, RG-11 coax cables are highly resistant to signal loss, making them a superior choice for long-distance installations. Their size and durability suit outdoor and industrial use where extended runs are required.
- RG-59: With a thinner central conductor, RG-59 cables are best suited for low-frequency transmissions over short distances. Commonly used in residential setups, RG-59 is an economical choice for applications like connecting video equipment or CCTV systems.
What Are Coaxial Cable Connectors?
A coaxial connector is a specialized type of connector used to join coaxial cables to devices or other cables. These coaxial connectors maintain the cable’s shielding and ensure a reliable connection for transmitting high-frequency signals. Coaxial connectors are essential in systems requiring consistent signal integrity, such as television, wireless communications, and data transmission.
Coaxial Cable Connectors Types
Coaxial cable connectors come in a wide range of types, each designed to suit specific applications and performance requirements. From high-frequency connectors like SMA and SMP to robust outdoor options like 7/16 DIN and N connectors, the variety ensures compatibility across diverse systems. These coaxial cable connectors are distinguished by their coupling mechanisms, frequency ranges, and physical sizes, allowing users to choose the ideal coaxial connector types for their needs, whether for residential, commercial, or industrial applications.

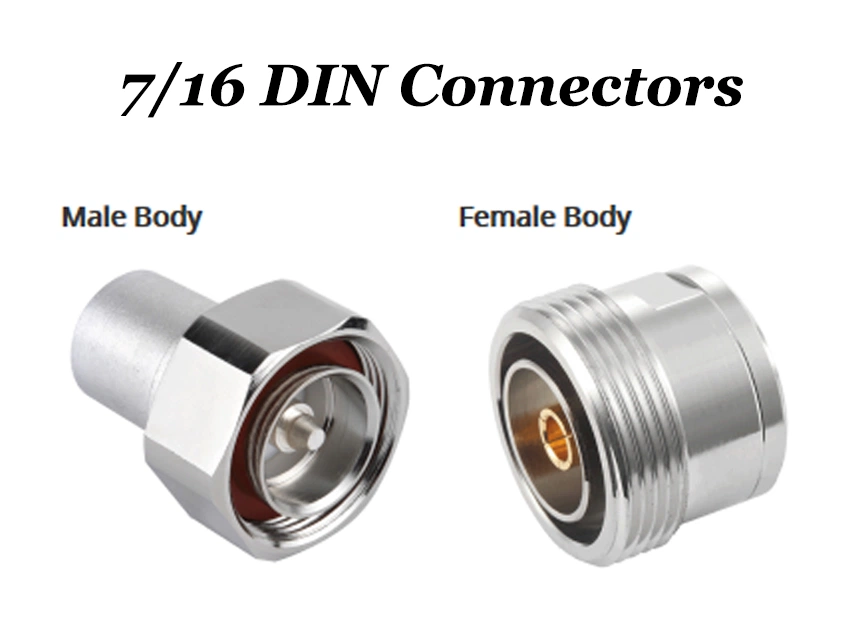

7/16 DIN Connectors
The 7/16 DIN connector is a robust, threaded coaxial connector designed for high-power applications.
- Features: Known for its ability to handle high power levels, the 7/16 DIN connector offers exceptional electrical performance with low passive intermodulation (PIM). Its threaded design ensures secure connections, and it is highly resistant to environmental factors such as moisture and dust.
- Applications: Commonly used in cellular base stations and high-power RF systems.

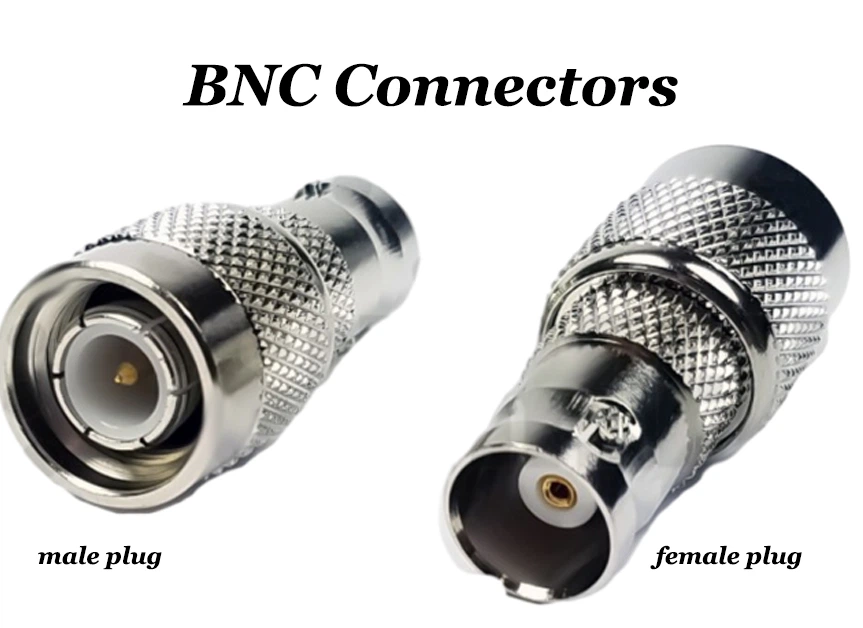

BNC Connectors
BNC connectors are bayonet-style connectors widely used in low-power RF applications.
- Features: BNC connectors typically operate in the frequency range of 0 to 4 GHz, ensuring reliable signal quality for both analog and digital signals. They are easy to connect and disconnect due to their bayonet-style locking mechanism, making them ideal for quick setups and adjustments.
- Applications: Found in television systems, test equipment, and CCTV cameras.

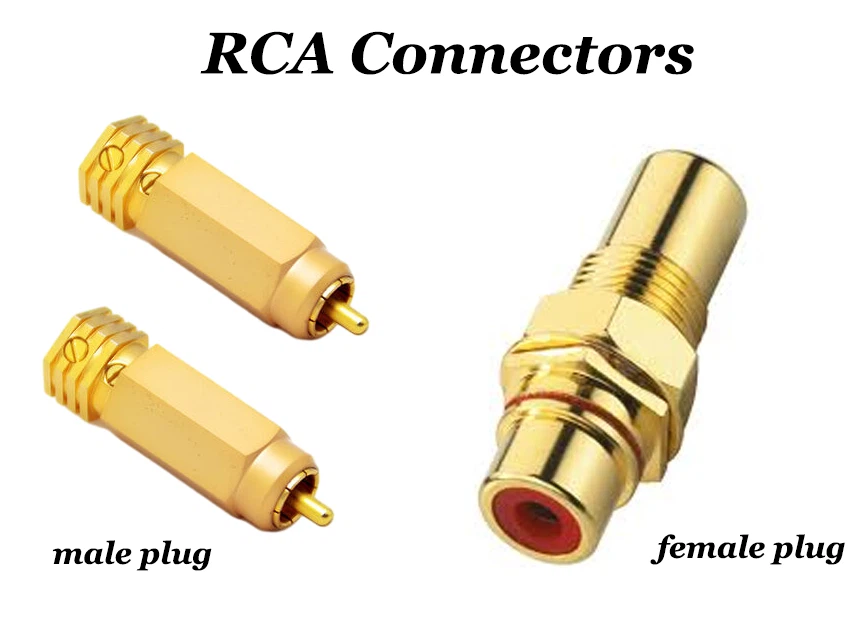

RCA Connectors
RCA connectors are commonly used for audio and video signals.
- Features: RCA connectors support both analog and digital signals, making them versatile for various devices. They are easy to identify with their color-coded plugs (e.g., red and white for audio, yellow for video) and are designed for quick and straightforward connection. Although they offer decent signal quality, RCA connectors are prone to interference compared to more modern digital alternatives like HDMI.
- Applications: Ideal for connecting home entertainment systems, including TVs and DVD players.
F-type Connectors
F connectors are threaded coaxial cable connectors primarily used for TV and satellite signals.
- Features: Commonly used with RG-6 and RG-59 coaxial cables, F connectors are known for their excellent signal transmission and ease of installation. They provide a secure, threaded connection that minimizes signal loss and interference. F connectors are also cost-effective and widely available.
- Applications: Common in cable television, satellite dishes, and internet modems.

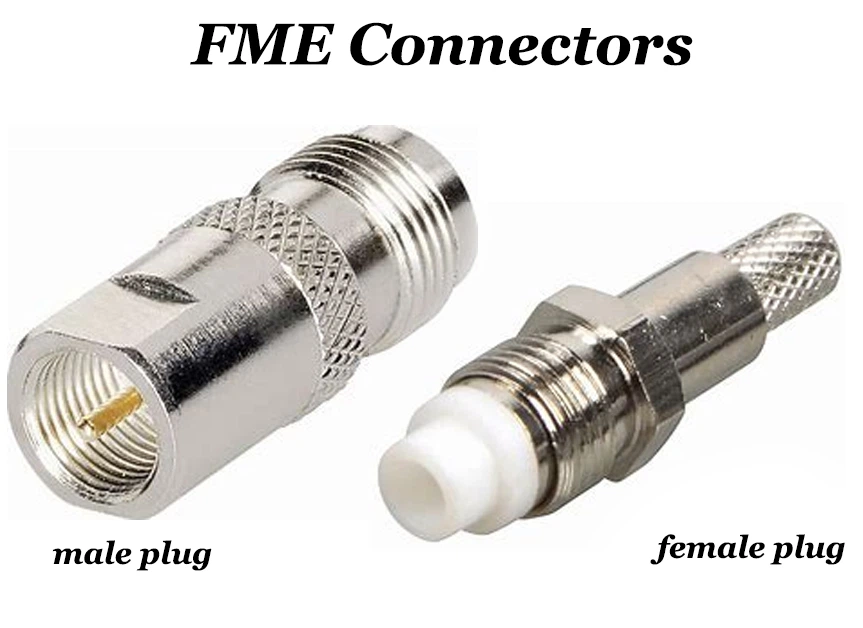

FME Connectors
FME connectors are compact connectors suitable for mobile applications.
- Features: Designed for use with small coaxial cables, FME connectors offer excellent signal transmission with minimal loss. Their compact size makes them ideal for confined spaces where larger connectors cannot fit. These connectors also have a threaded interface for a secure connection.
- Applications: Frequently used in mobile antennas, GPS systemsand communication equipment.
MBX Connectors
MBX connectors are push-on connectors designed for quick connection and disconnection.
- Features: These MBX connectors provide high performance with low signal loss and are ideal for situations requiring frequent reconnections. MBX connectors also support a wide range of frequencies and ensure consistent signal quality.
- Applications: Used in telecommunications and wireless networks and modular systems.
MCX Connectors
MCX connectors are miniature coaxial cable connectors designed for compact and lightweight applications.
- Features: With a snap-on interface, MCX connectors ensure quick and reliable connections. They support frequencies up to 6 GHz and are suitable for space-constrained setups. Their low weight and compact design make them a popular choice for portable devices.
- Applications: Common in GPS systems, wireless devices, and telecommunications.

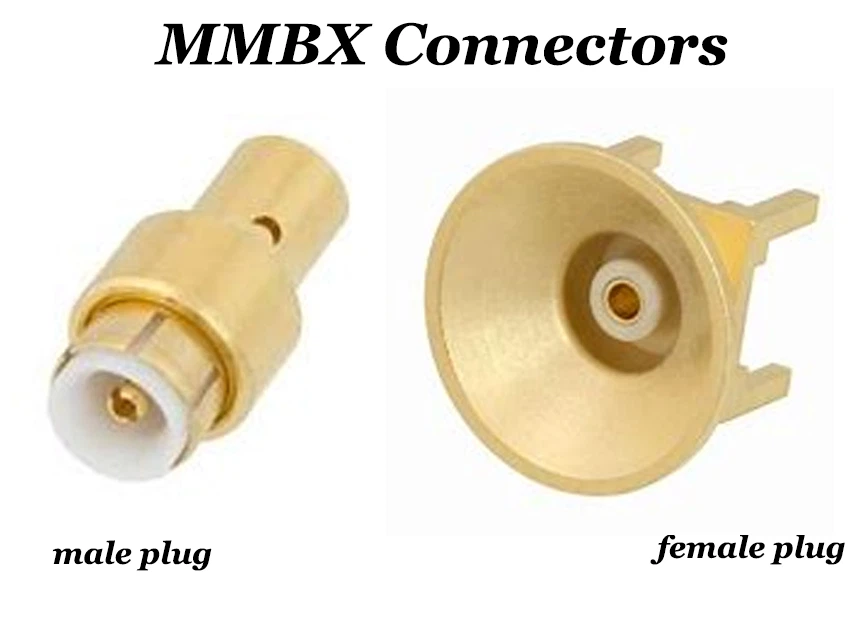

MMBX Connectors
MMBX connectors offer flexibility in high-density applications.
- Features: These connectors are designed to accommodate axial and radial misalignment, ensuring consistent signal transmission even in challenging setups. They are lightweight and support high-frequency signals with minimal loss, making them suitable for modular and high-density configurations.
- Applications: Often used in modular systems ,automotive communication systems and base stations.

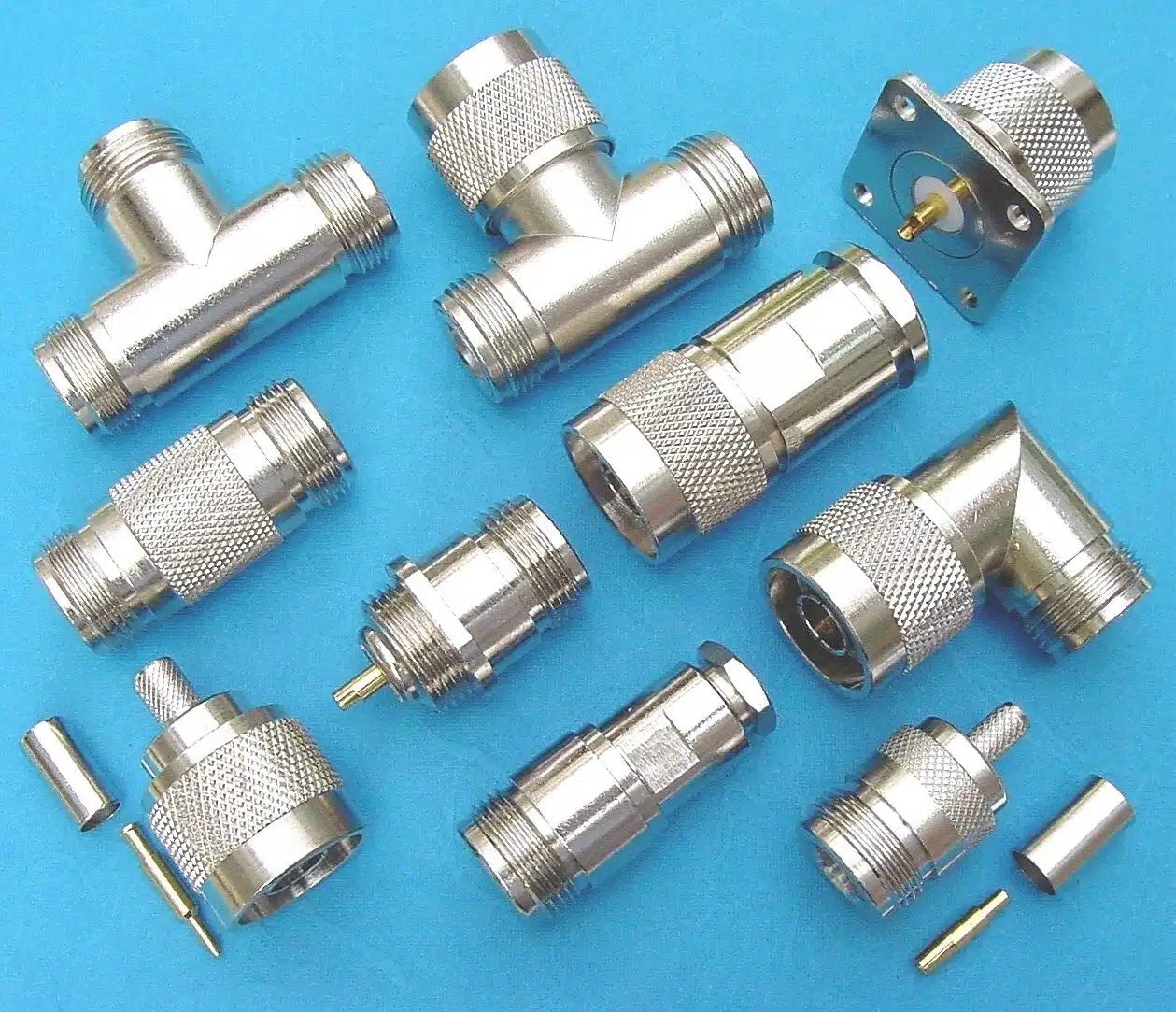

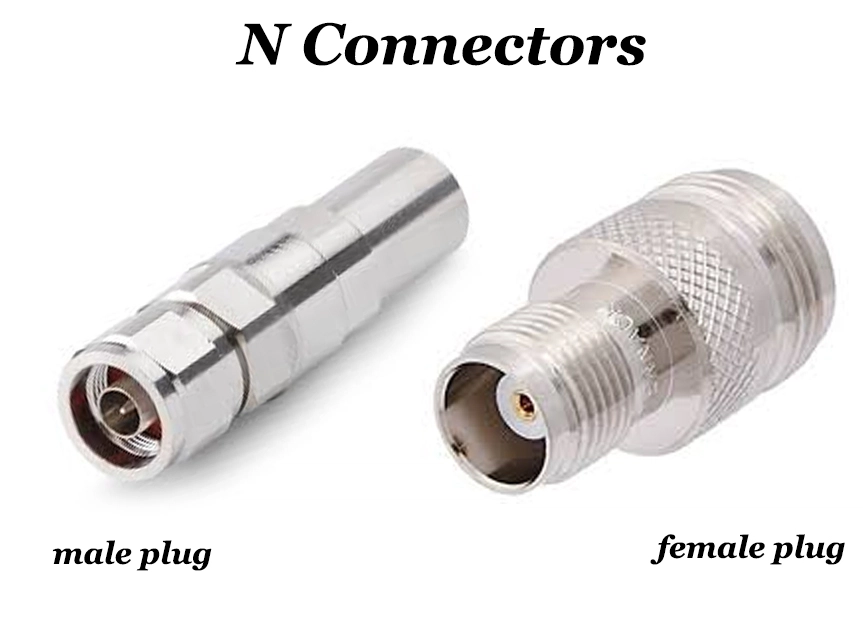

N Connectors
N connectors are threaded, medium-sized connectors for high-frequency applications.
- Features: With a frequency range up to 11 GHz, N connectors provide excellent signal integrity and durability. They are designed to be waterproof, making them suitable for outdoor installations. The threaded coupling mechanism ensures a strong and reliable connection, even in environments prone to vibration.
- Applications: Ideal for wireless base stations, radar systems, and test equipment.

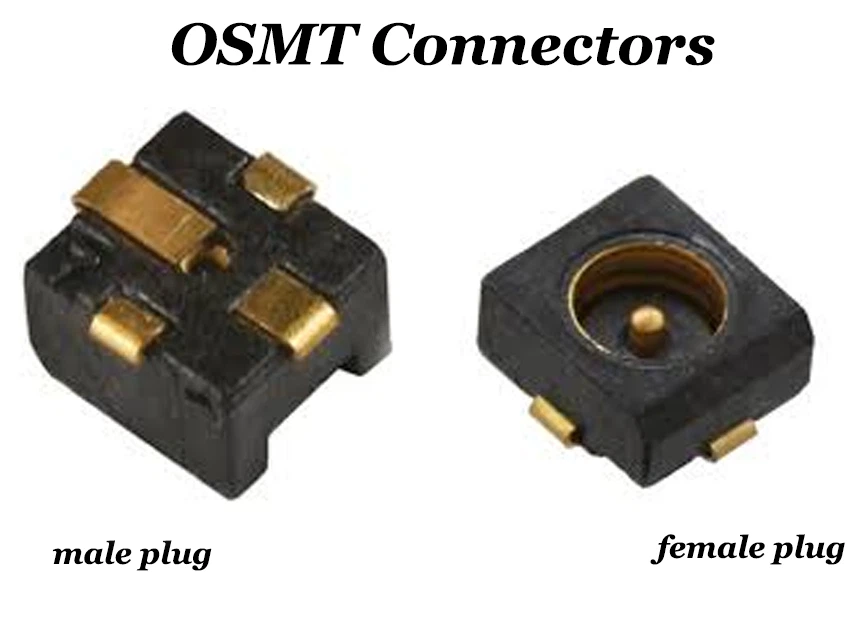

OSMT Connectors
OSMT connectors are ultra-miniature connectors specifically designed for high-frequency applications.
- Features: These connectors are extremely compact, supporting frequencies up to 60 GHz. They feature a secure latching mechanism that ensures reliable performance even in high-vibration environments. OSMT connectors offer excellent signal integrity in very small form factors.
- Applications: Found in medical devices, compact wireless systemsand telecommunications.

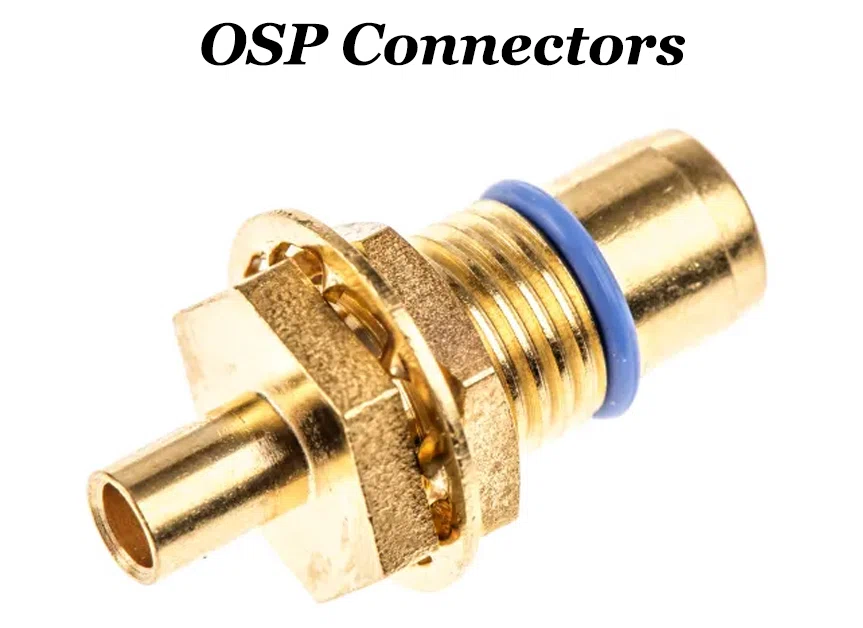

OSP Connectors
OSP connectors are rugged connectors built for harsh outdoor environments.
- Features: They are weatherproof and corrosion-resistant, with a durable design to withstand extreme temperatures and moisture. OSP connectors ensure minimal signal loss and are often equipped with additional shielding for noise immunity.
- Applications: Used in outdoor communication systems, such as remote radio heads, outdoor wireless networks, and industrial-grade applications requiring robust connectivity.

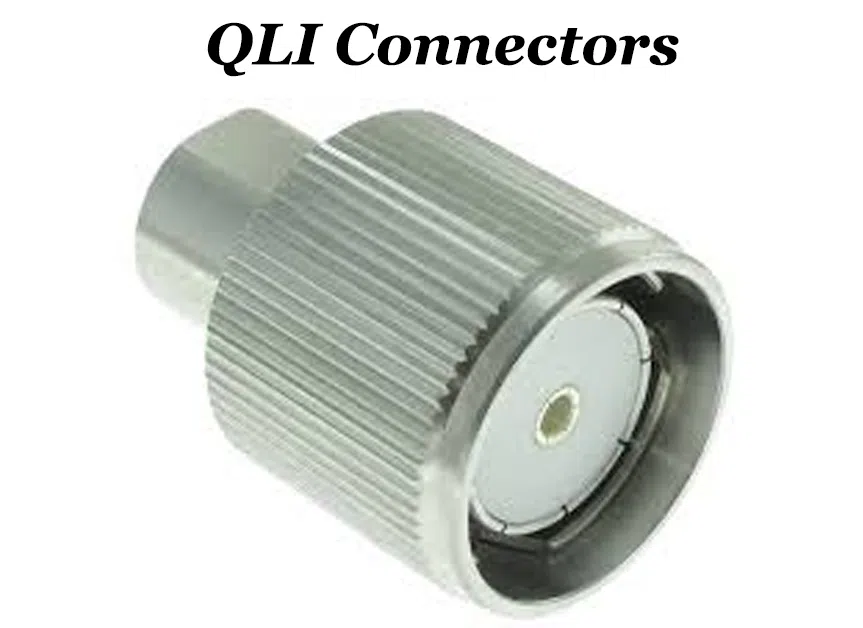

QLI Connectors
QLI connectors are quick-lock connectors designed for high-power and high-frequency applications.
- Features: Featuring a user-friendly locking mechanism, QLI connectors provide secure connections with excellent electrical performance. They are capable of handling significant power loads and are resistant to environmental factors like dust and moisture.
- Applications: Utilized in wireless infrastructure and broadcast systems.

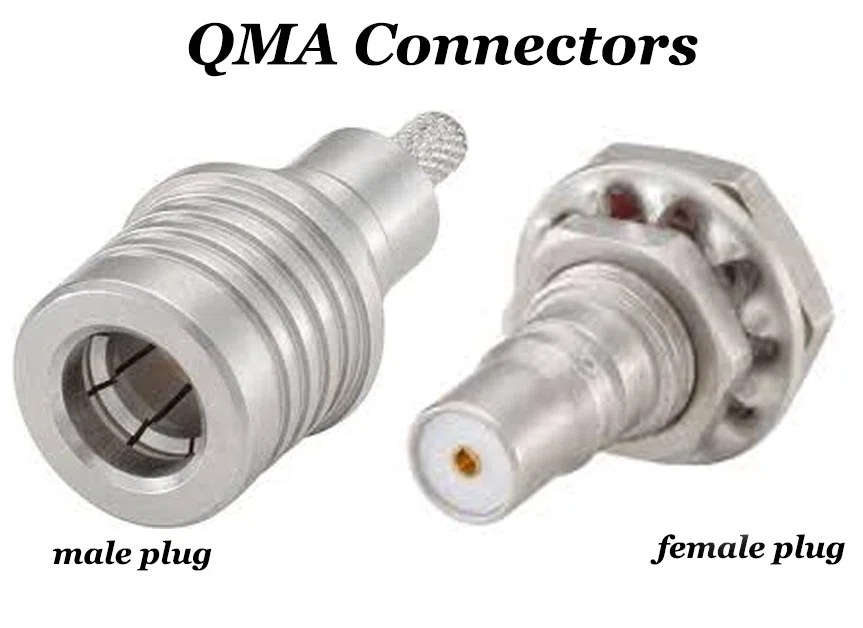

QMA Connectors
QMA connectors are quick-lock alternatives to SMA connectors, offering similar performance with added convenience.
- Features: These connectors are designed for frequencies up to 18 GHz and provide quick and secure connections without the need for threading. Their compact size and easy installation make them a preferred choice for tight spaces.
- Applications: Used in telecommunications, test systems, and aerospace applications where quick disconnections and re-connections are required.

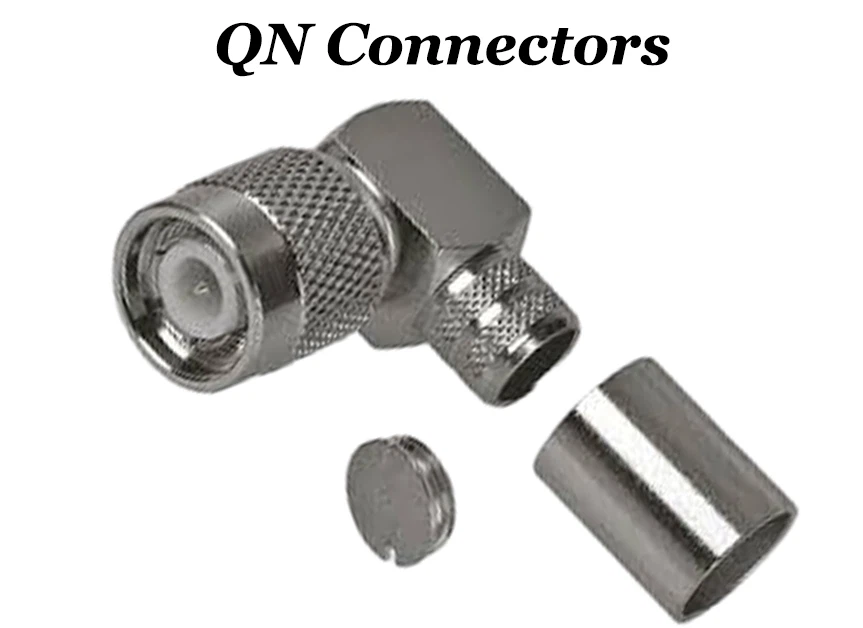

QN Connectors
QN connectors are quick-lock versions of N connectors, combining the reliability of N connectors with faster installation.
- Features: Designed to support frequencies up to 11 GHz, QN connectors offer a secure connection with minimal signal loss. Their quick-lock mechanism reduces installation time and ensures durability in harsh environments.
- Applications: Suitable for wireless systems , testing equipment and outdoor installations.
SHV Connectors
SHV connectors are specialized coaxial cable connectors designed to safely handle high-voltage applications.
- Features: SHV connectors feature insulated designs that prevent arcing and ensure operator safety when dealing with high-voltage signals. They are capable of handling voltages up to several kilovolts and are designed for reliable, long-term performance.
- Applications: Found in medical and nuclear systems.

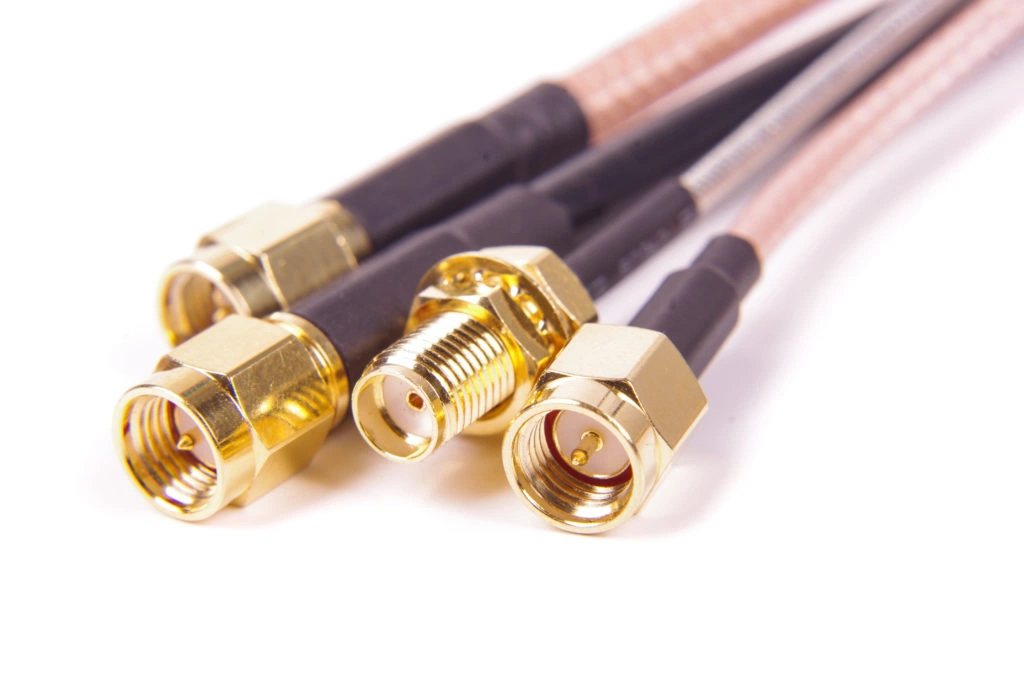

SMA Connectors
SMA connectors are compact and threaded for high-frequency use.
- Features: They are designed to operate at frequencies up to 18 GHz or higher, providing excellent electrical performance and low signal loss. The threaded coupling ensures a secure and vibration-resistant connection, making them ideal for demanding applications. SMA connectors are also known for their impedance consistency, typically at 50 ohms, which minimizes signal reflection and degradation.
- Applications: Common in microwave systems, antennas, and GPS devices.
SMB Connectors
SMB connectors are compact, snap-on coaxial cable connectors designed for medium-frequency applications.
- Features: These connectors provide reliable performance for frequencies up to 4 GHz, with a small form factor that allows for use in tight spaces. The snap-on mechanism simplifies installation while maintaining a secure connection.
- Applications: SMB connectors are frequently used in telecommunications, automotive systems, and wireless communication devices where space efficiency and moderate performance are required.

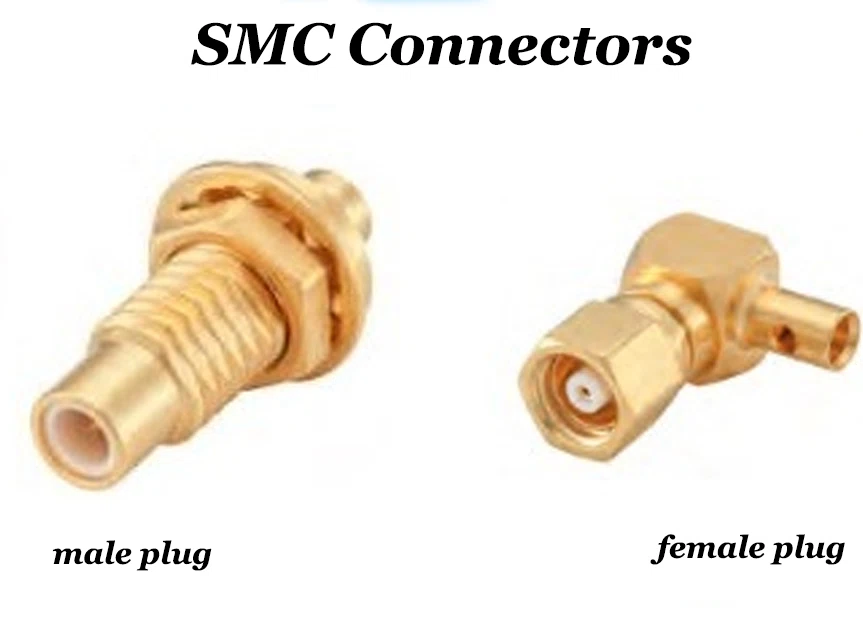

SMC Connectors
SMC connectors are small, threaded coaxial cable connectors designed for high-frequency applications.
- Features: These connectors operate up to 10 GHz and provide robust, secure connections due to their threaded interface. Their compact size and durability make them ideal for demanding environments.
- Applications: SMC connectors are widely used in instrumentation, telecommunications, and defense systems, where precision and reliability are key.

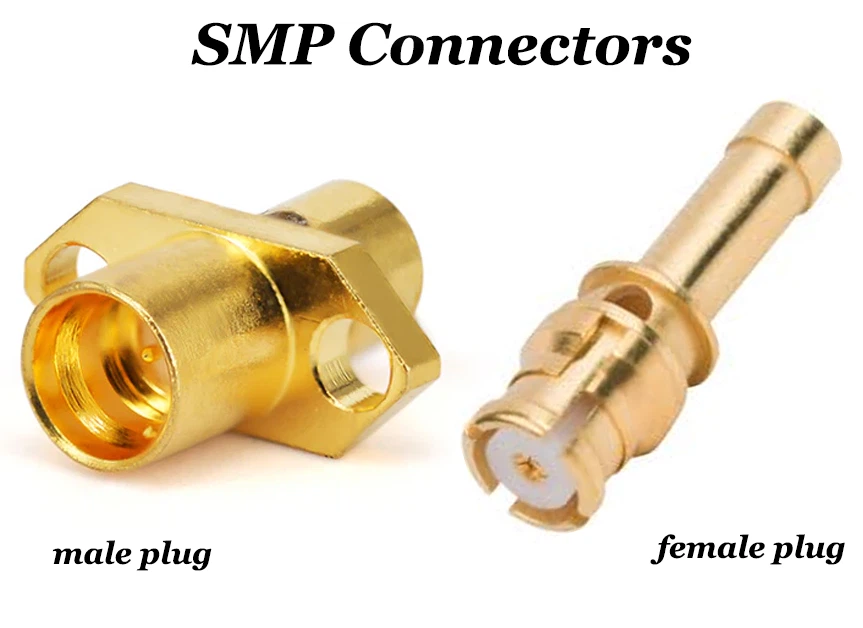

SMP Connectors
SMP connectors are ultra-miniature coaxial connectors ideal for high-density and compact systems.
- Features: Capable of supporting frequencies up to 40 GHz, SMP connectors are designed for high-performance RF and microwave applications. Their push-on or snap-on design allows for quick and secure connections, even in limited spaces.
- Applications: Commonly used in aerospace, military communications, and satellite systems, SMP connectors are perfect for environments requiring lightweight and high-frequency solutions.

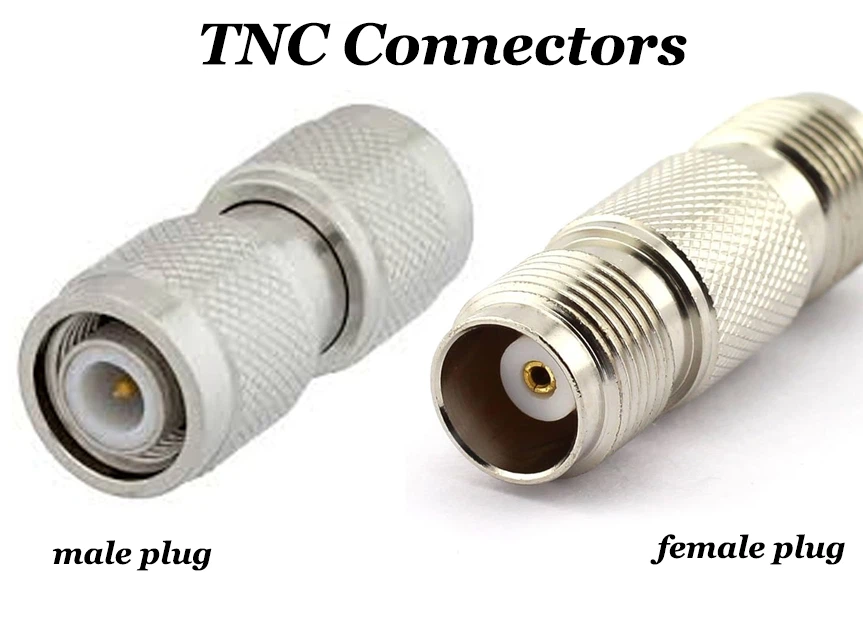

TNC Connectors
TNC connectors are threaded versions of BNC connectors, designed for enhanced durability and performance.
- Features: TNC connectors operate efficiently up to 11 GHz, providing better weather resistance and durability than their BNC counterparts. The threaded coupling ensures a reliable connection in environments subject to vibration and movement.
- Applications: Common in military, outdoor wireless networksand cellular communication systems.

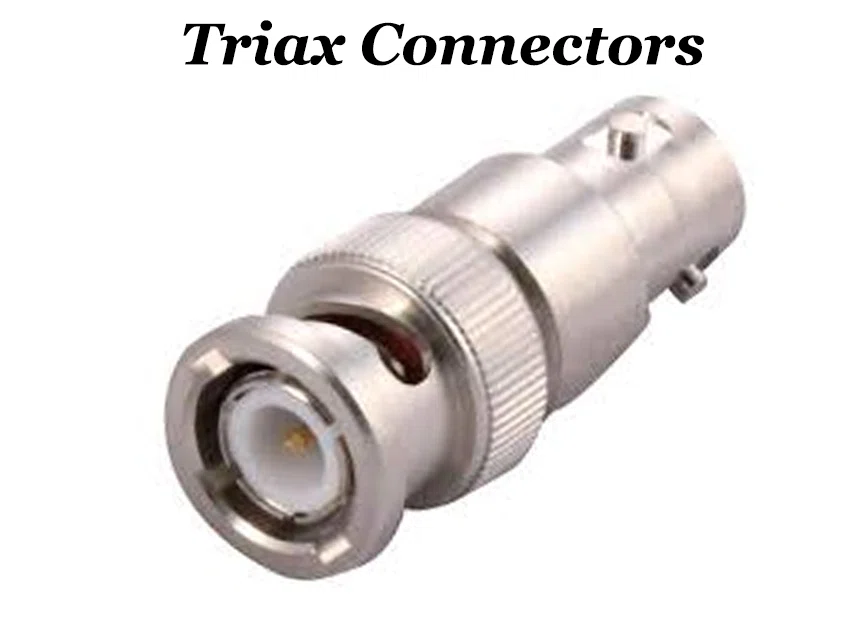

Triax Connectors
Triax connectors are advanced versions of BNC connectors, incorporating an additional shielding layer to enhance signal integrity.
- Features: These connectors provide superior noise immunity and reduced signal interference, making them ideal for environments with significant electromagnetic interference (EMI). The triple-layer shielding ensures precise signal transmission.
- Applications: Widely used in broadcasting, professional video equipment, and medical imaging systems, where high signal fidelity is critical.
Twinax Connectors
Twinax connectors are specialized for differential signal transmission, ensuring robust communication in high-noise environments.
- Features: They offer low signal loss and exceptional noise immunity, making them suitable for balanced signal transmission. Twinax connectors are designed for short-distance, high-speed data applications.
- Applications: Common in computer networks, avionics, and military communication systems where precision and reliability are essential.
UHF Connectors
UHF connectors are robust, threaded connectors optimized for low-frequency applications.
- Features: Known for their affordability and ease of use, UHF connectors can handle frequencies up to 300 MHz. They are ideal for applications where high-frequency performance is not critical but durability is important.
- Applications: Widely used in amateur radio systems, public address systems, and vintage communication equipment.
UMCC Connectors
UMCC connectors are ultra-miniature coaxial cable connectors designed for high-density applications.
- Features: These connectors provide excellent signal integrity in a compact form factor, supporting frequencies up to 6 GHz. Their small size and lightweight design make them perfect for portable and wearable devices.
- Applications: Common in compact wireless devices, IoT applications, and medical equipment where size and performance are critical.
How to Choose The Right Coaxial Cable Connectors?
Choosing the right coaxial cable connectors is critical for ensuring optimal performance and reliability in your application. Here are the key factors to consider:
Frequency Range
Coaxial cable connectors are designed to operate within specific frequency ranges. For high-frequency applications (e.g., satellite communication or radar systems), connectors like SMA or SMP, which can handle frequencies up to 18 GHz or higher, are suitable. For lower-frequency applications, UHF or BNC connectors may be sufficient.
Impedance
Most coaxial systems require connectors with a specific impedance, typically 50 or 75 ohms. Match the impedance of the connector to that of the cable and system to avoid signal reflections and loss.
Application Type
Consider the environment and purpose of the application:
- Outdoor use: Opt for weatherproof connectors like 7/16 DIN or N connectors, which are durable and resistant to moisture and dust.
- Compact devices: Choose miniature connectors like MCX, SMB, or UMCC for tight spaces and lightweight designs.
- High-power systems: Use connectors like 7/16 DIN, designed to handle high power without signal degradation.
Coupling Mechanism
Different connectors use different coupling mechanisms:
- Threaded connectors (e.g., SMA, TNC): Provide secure connections in high-vibration environments.
- Snap-on connectors (e.g., BNC, MCX): Offer quick and easy installation.
- Push-on connectors (e.g., MBX, SMP): Ideal for high-density systems requiring frequent disconnections.
Coaxial Cable Type
Match the connector to the type of coaxial cable being used (e.g., RG-6, RG-59, or RG-11). Some connectors are designed specifically for certain cable diameters and constructions.
Durability
For environments with harsh conditions, choose connectors made from corrosion-resistant materials like stainless steel or brass with protective plating.
System Compatibility
Ensure the connector is compatible with the devices or components in your system, including adapters and existing connections.
Some FAQs
What are the three types of coaxial connectors?
The three main types of coaxial connectors are:
- Threaded Connectors (e.g., SMA, TNC): Provide secure, durable connections, ideal for high-frequency or high-vibration environments.
- Bayonet Connectors (e.g., BNC): Offer quick connect/disconnect functionality, commonly used in RF and video applications.
- Push-On Connectors (e.g., MCX, SMP): Designed for compact spaces and easy installation in high-density systems.
How do you join a coaxial cable?
To join a coaxial cable, use a compatible connector by following these steps:
- Strip the cable to expose the inner conductor and shielding.
- Attach the connector securely to the stripped cable, ensuring proper alignment.
- Use a coupling device or adapter to join it to another cable or device. Specialized tools, such as a crimping tool, may be needed for a strong connection.
Do coax connectors reduce signal?
High-quality coax connectors are designed to minimize signal loss, but improper installation, poor-quality materials, or mismatched impedance can cause slight signal degradation. Choosing the right connector and ensuring a proper fit helps maintain signal integrity.
What is a coaxial cable connector?
A coaxial cable connector is a device that joins coaxial cables to equipment or other cables. It preserves the shielding and ensures efficient transmission of high-frequency signals, making it essential for television, internet, and telecommunication systems.
Conclusion
Coaxial cable connectors play a vital role in ensuring reliable signal transmission across various systems. From 7/16 DIN connectors for high-power applications to SMA connectors for high-frequency devices, each type offers unique features tailored to specific needs. Understanding these coaxial connector types helps in selecting the right connector for your application, ensuring optimal performance and efficiency.
