In this guide, we’ll explain everything you need to know about RCA connector wiring diagrams. Whether you’re setting up a new sound system, connecting a DVD player, or troubleshooting audio/video problems, understanding these diagrams will save you time and frustration. We’ll break down the basics in simple terms and provide clear wiring diagrams for different setups.
By the end of this article, you’ll know exactly where each colored cable should go, how to read the connection diagrams on your devices, and how to fix common wiring problems. Let’s untangle the mystery of RCA connector wiring diagrams together!
Table of Contents
Understanding RCA Connector Basics
RCA connectors are those round plugs with a metal pin in the middle that you use to connect TVs, DVD players, game consoles, and sound systems. They’ve been around for decades and are still common in many homes.
Before we look at RCA connector wiring diagrams, let’s understand what these connectors actually do. They carry signals – either audio (sound) or video (picture) – from one device to another.
RCA Connector Wiring Diagram for Basic Audio Setup
For a simple stereo audio connection, you’ll need two RCA connectors – one red and one white (or sometimes black). Here’s the wiring diagram:
In this RCA connector wiring diagram:
- Red connects to the right audio channel
- White/Black connects to the left audio channel
Always connect outputs from your source device (like a CD player) to inputs on your receiving device (like speakers or an amplifier).
RCA Connector Wiring Diagram for Video Connections
For basic video, you’ll use a yellow RCA connector. Here’s what that wiring looks like:
or better quality component video, you’ll use three RCA connectors:
- Green (Y) – Brightness information
- Blue (Pb) – Blue color information
- Red (Pr) – Red color information
Complete Home Theater RCA Connector Wiring Diagram
If you’re setting up a full home theater system, you might need this more complex RCA connector wiring diagram:
Image Source: cablewholesale.com
In this setup:
- Your source devices (DVD, game console, etc.) connect to your receiver
- Your receiver processes the signals
- The receiver sends video to your TV and audio to your speakers
How to Read RCA Connector Wiring Diagrams on Equipment

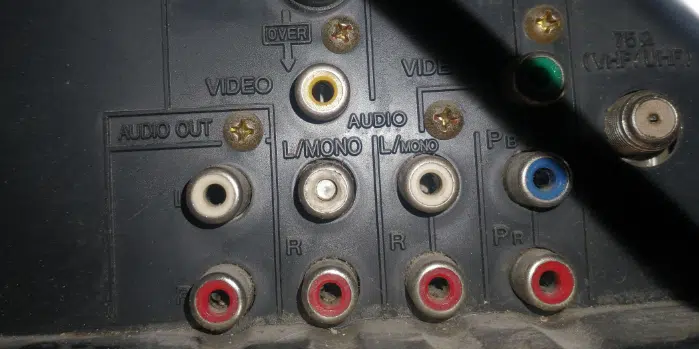

Devices often have their own RCA connector wiring diagrams printed on the back. They look like this:
- If it’s an INPUT or OUTPUT
- What type of signal it accepts (audio or video)
- Which channel it’s for (left, right, center, etc.)
Common Problems in RCA Connector Wiring
When following an RCA connector wiring diagram, watch out for these common issues:
- Mixed up inputs and outputs – Always connect outputs to inputs, never outputs to outputs or inputs to inputs
- Wrong colors – Match the colors in the wiring diagram exactly
- Loose connections – RCA connectors should fit snugly
Some FAQs
What do the colors on RCA cables mean?
Red = Right audio, White (or black) = Left audio, Yellow = Video.
Can I use audio RCA cables for video signals?
Technically yes, but video cables are made for higher frequencies. For best quality, use proper video (yellow) cables.
How do I connect RCA cables to a stereo system?
Match the red and white plugs to the red and white input jacks on your stereo. Red is right, white is left.
Why is there no sound or video after connecting RCA cables?
Check for loose plugs, wrong input selection on your device, or damaged cables. Make sure colors match correctly.
Can I connect RCA to HDMI?
Not directly. You need an RCA-to-HDMI converter box to change the signal type.
Is it okay to use only one RCA cable for audio?
Yes, but you’ll get mono sound. Use both red and white for full stereo sound.
Conclusion
Understanding RCA connector wiring diagrams helps you set up your audio and video equipment correctly. Remember to match colors, connect outputs to inputs, and make sure all connections are secure.
With the RCA connector wiring diagrams in this guide, you should be able to connect almost any audio or video device in your home. If you’re still having trouble, check the user manuals for your specific devices, as they often contain detailed wiring diagrams.
