How do Speaker Connectors Work?
Speaker connectors are the physical interface between an audio device (such as an amplifier or receiver) and a loudspeaker. They usually consist of two or more metal terminals that provide a secure electrical connection. When an audio signal is sent from an amplifier, it passes through these connectors into the voice coil of the speaker. The voice coil vibrates in a magnetic field, moving the cone, which produces sound waves. This design ensures signal integrity while providing a convenient and reliable connection for a wide range of audio applications.
The positive and negative terminals of sound systems and speakers are color-coded to indicate polarity. Positive (+) terminals are red and negative (-) terminals are black.
What Speaker Connectors are Commonly used?
XLR Connectors
XLR connectors are professional grade audio connectors with three pins for balanced audio transmission.
XLR connectors typically have three pins: 1, 2, and 3. Pin 1 is grounded and provides a reference for the signal. Pins 2 and 3 carry the audio signal. Pin 2 is a positive or hot signal and pin 3 is a negative or cold signal. This balanced design helps minimize noise and interference, making the XLR connector the preferred choice for professional audio equipment.
They excel in pro audio applications due to their secure locking mechanism and superior noise rejection.
Commonly used in professional microphones, mixing consoles and high-end audio equipment.
RCA Connectors
RCA (Radio Corporation of America) connectors, despite their consumer audio origins, play a crucial role in many audio applications. Their design features a center pin for signal transmission and an outer shield for ground connection. The color-coding system (red for right channel, white or black for left channel) has become a universal standard. While they don’t lock mechanically, many professional-grade RCA connectors utilize spring-loaded contacts and tight-fitting shells to maintain secure connections. There are many RCA plug types, such as Stereo RCA Connectors, Mono RCA Connectors and other RCA adapters, but the most common ones are Stereo RCA Connectors.High-end versions often feature gold-plated contacts and multi-layer shielding to minimize interference.
RCA plugs commonly used in older subwoofers and monitor speakers.
TS and TRS ¼ Inch Connector
The ubiquitous 1/4-inch connector, dating back to 1878, predates even the Speakeron connector. Originally designed for telecommunications, these connectors were used by telephone operators to connect customers to their desired parties. Today, the 1/4-inch connector remains a staple in professional audio systems, serving both audio and speaker connections. Available in balanced and unbalanced configurations, this versatile connector has evolved from its humble beginnings in telephony to become a cornerstone of modern audio technology.
Commonly used in amplifiers Speakers (active or passive), amplifiers, musical instruments.
Balanced (TRS)
TRS (Tip-Ring-Sleeve) connectors feature three contact points, enabling balanced audio transmission.Each contact serves a specific purpose: the tip carries the signal, the ring carries the inverted signal (180 degrees out of phase), and the sleeve acts as a common ground. They’re widely used in professional audio equipment for their excellent noise rejection and signal integrity preservation.
Unbalanced (TS)
TS (Tip-Sleeve) connectors have two contacts: the Tip for transmitting the audio signal and the Sleeve for grounding. This unbalanced connection is more susceptible to noise interference than balanced TRS connectors, and is commonly used for mono equipment such as electric guitars.
While both instrument cables and speaker cables utilize the TS interface, there are significant differences in their internal construction. Instrument cables typically utilize thinner wires and lower capacitance to ensure signal integrity. In contrast, speaker cables utilize thicker wires and higher capacitance to accommodate high power transmission.
Speakon Connectors
Developed by Neutrik, Speakon connectors are professional-grade locking connectors designed for high-power loudspeaker applications. They feature a robust twist-lock design that ensures a secure connection even under high vibration conditions. They are available in a variety of configurations (2-pole, 4-pole and 8-pole) and can safely handle high power levels (typically up to 40A rms per contact).
Their keyed design prevents misconnections, while a locking mechanism provides both security and easy disconnection when needed.
Their design includes protective enclosures and strain relief, making them ideal for professional and live sound applications where reliability and safety are paramount, such as active and passive PA speakers, subwoofers.

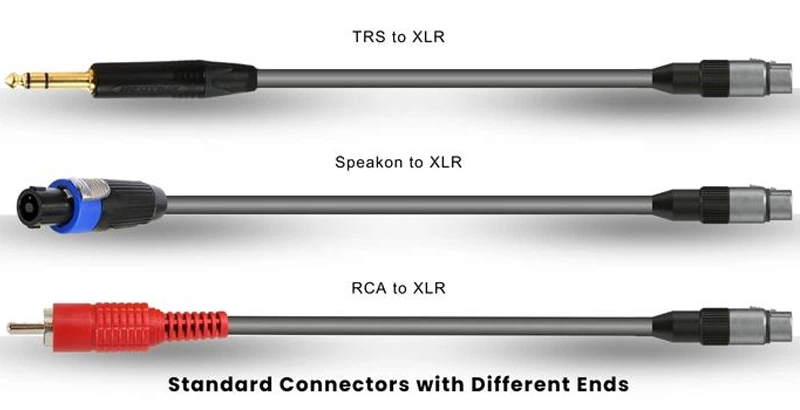

Standard connectors with different ends
These versatile cables feature different connector types on each end, allowing interconnection between various audio equipment types. Common combinations include XLR to TRS, TRS to RCA, speaker to xlr and others.
Less Common Speaker Connector Types
Banana Plugs
Banana plugs, named for their spring-loaded side prongs that resemble a banana, offer a sophisticated solution for high-end audio connections. These 4mm banana plugs typically feature gold or rhodium-plated contacts for optimal conductivity. Advanced designs incorporate expanding mechanisms that ensure maximum contact surface area with binding posts. Banana plugs types according to different situations, such as Pogo pin banana plug, dente banana plug and so on.Some manufacturers offer “stackable” banana plugs that allow multiple connections to a single binding post, facilitating bi-wiring or daisy-chaining configurations.
Banana plugs are commonly used with speaker amplifiers and passive speakers with binding posts.
Spade Connectors
Spade connectors excel in high-power applications where maximum contact area is crucial. Professional-grade spades often utilize oxygen-free copper or silver-plated copper construction for optimal conductivity. The spade angle and thickness are engineered to maintain proper contact pressure under thermal cycling. Spade connectors come in straight and angled styles. But there is not much difference between them.Many designs incorporate multiple contact points to ensure redundant electrical connection and feature anti-corrosion coatings for long-term reliability.
Spade plugs are used for wall mounted speakers, old combo amps.
Binding Post / Speaker Terminals
Binding posts represent one of the most versatile connection options in audio. Professional-grade posts often feature gold-plated brass construction for optimal conductivity and corrosion resistance. The design typically accommodates bare wire up to 10 gauge, spade connectors, banana plugs, and pin connectors. Many high-end binding posts incorporate sophisticated insulation materials to prevent signal leakage and maintain separation between positive and negative terminals, even under high-power conditions.
Binding posts are used for older amplifiers and passive speakers.

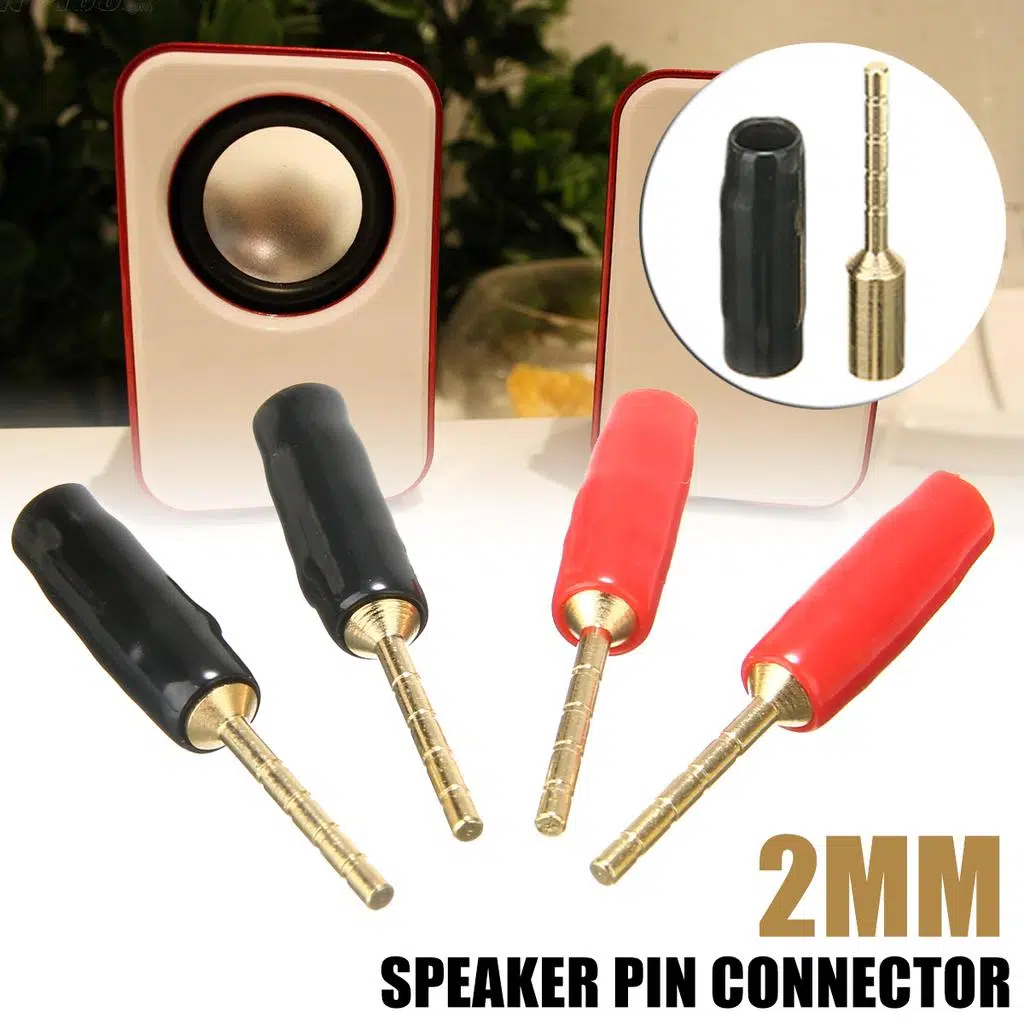

Speaker Pin Connectors
Pin connectors, while simple in concept, incorporate sophisticated engineering in their design. Professional-grade pins often feature gold-plated beryllium copper contacts for optimal conductivity and spring tension retention. The pin diameter and length are precisely calculated to ensure proper contact pressure and prevent disconnection under vibration. Many designs incorporate strain relief and orientation keying to prevent incorrect connections.
Speaker Pin Connectors are suitable for speaker amplifiers and passive speakers with binding posts.
Which Speaker Connector Types is Right for Me?
Different speaker connector types are used in different application scenarios. Here are three common occupations that use speaker plugs. See which one you belong to: musician, live sound engineer, studio engineer.
Musician
*Guitar & Amplifier Connections: 1/4 inch TS (Jack) or Speaker Cables
- Primary use: Guitar amplifier to speaker cabinet connections
- Power handling: Typically rated for 50-1000 watts
- Recommended gauge: 12-16 AWG for optimal power transfer
- Important features: Heavy-duty jacket, strain relief, and high-current capacity connectors
- Best practices: Keep cable runs under 25 feet to minimize power loss
*Stage Monitor Connections: XLR Connectors
- Primary use: Connection to powered stage monitors
- Benefits: Balanced signal transmission, electromagnetic interference rejection
- Cable length capability: Effective up to 100+ feet without signal degradation
- Important features: Locking mechanism, gold-plated contacts
- Additional consideration: Often used in combination with TRS for flexible routing options
*Amplifier to Cabinet Connections: 1/4 inch Speaker Cables
- Primary use: High-power amplifier to passive speaker cabinet connections
- Critical specifications:
- Minimum 14 AWG wire gauge
- High-strand-count copper conductors
- Heavy-duty connector housing
- Safety features: Reinforced jacket and strain relief
- Best practices: Regular inspection for wear and tear
Live Sound Engineer
*Main PA System: Speakon Cables
- Primary applications: Main PA speakers and subwoofers
- Advantages:
- Locking mechanism prevents accidental disconnection
- Higher current capacity (up to 40A)
- Touch-proof contacts

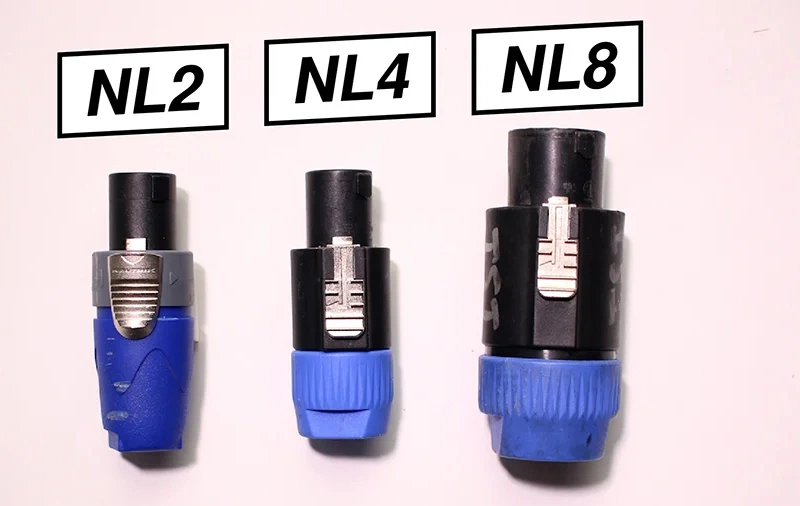

- Configurations available: 2-pole, 4-pole, and 8-pole options
- Best practices: Regular testing of locking mechanism
*Signal Chain Connections: XLR Connectors
- Primary uses:
- Mixing console to power amplifiers
- Signal processing equipment
- Active PA speakers
- Key features:
- Balanced audio transmission
- RF interference rejection
- Robust mechanical construction
*Amplifier Connections: 1/4 inch TS Connections
- Applications:
- Amplifier to passive PA speakers
- Monitor amplifier outputs
- Equipment patch points
- Important considerations:
- Cable gauge selection based on power requirements
- Proper strain relief implementation
- Regular maintenance checks
*Speaker Cabinet Connections: 1/4 inch Speaker Cables
- Specific uses: High-power amplifier to speaker cabinet routing
- Technical requirements:
- Minimum 12 AWG for main PA systems
- High-quality connectors with strain relief
- Proper current handling capacity
Studio Engineer
*Monitor Speaker Connections: XLR Connectors for Powered Monitors
- Applications: Professional studio monitor connections
- Benefits:
- Excellent noise rejection
- Consistent ground reference
- Professional standard compatibility
*Legacy Equipment Integration: RCA to Aux Connections
- Uses: Integration of vintage or consumer-grade equipment
- Considerations:
- Ground loop prevention
- Signal level matching
- Proper shielding requirements
*Advanced Speaker Connections: Binding Posts, Banana Plugs, and Spade Connectors
- Applications:
- High-end passive monitors
- Custom installation requirements
- Audiophile-grade systems
- Technical considerations:
- Contact surface area optimization
- Proper torque specifications
- Material compatibility
*Active Monitor Integration: 1/4 inch TRS
- Specific uses: Professional active monitors with line-level inputs
- Features:
- Balanced signal capability
- Professional level compatibility
- Flexible routing options
*Power Amplification: 1/4 inch Speaker Cables
- Critical specifications:
- Power handling capacity
- Conductor gauge selection
- Insulation quality
- Installation considerations:
- Cable routing and support
- Thermal management
- Access for maintenance
Some FAQs
What Happens if You use a speaker cable as a guitar cable?
Using a speaker cable as a guitar cable is not recommended. Speaker cables lack the proper shielding needed for instrument signals, potentially resulting in noise and interference. Guitar cables are specifically designed for low-level instrument signals.
What are the 3 main audio connector types?
- XLR: Professional, balanced connections for high-quality audio.
- RCA: Common in consumer audio, used for unbalanced connections.
- 1/4 inch TRS: Versatile connectors used for both balanced and unbalanced signals.
Which one has better sound quality XLR or 1/4 inch cable?
XLR cables generally provide better sound quality due to their balanced design and superior noise rejection. However, high-quality 1/4 inch TRS cables can perform similarly well in balanced configurations. The choice often depends more on the specific application and cable quality than the connector type itself.
How to connect speakers to a receiver?
- Match polarity: Connect the positive (+) terminal on the speaker to the positive (+) terminal on the receiver, and the negative (-) to the negative (-).
- Use the appropriate connectors: Choose the correct connectors for your speakers and receiver (e.g., banana plugs, binding posts).
- Secure connections: Ensure all connections are tight and secure to prevent signal loss and interference.
- Refer to your receiver’s manual: Consult your receiver’s manual for specific instructions and connection diagrams.
Conclusion
The selection of appropriate speaker connector types fundamentally impacts system reliability and performance.
Professional applications demand high-quality, balanced connections using XLR or Speakon connectors, particularly where signal integrity and reliability are paramount.
Home audio installations might benefit more from the convenience of banana plugs or the versatility of binding posts. The key is matching connector choice to both technical requirements and practical considerations like frequency of connection changes and environmental conditions.
If you want to DIY your own cables or can’t find the right audio cable wire brand, I hope the following article can help you:
